Installing Agents for the Java Applications Deployed in CCE Containers
Note
- You are advised to install self-developed Agents for the Java applications deployed in CCE containers.
Prerequisites
- The network between your host and APM is normal.
You can run the Telnet command to check the network.
- For details, see Regions and Endpoints.
- The AK/SK required for accessing JavaAgents have been obtained. To obtain them, log in to the APM console and choose System Management > Access Keys in the navigation pane.

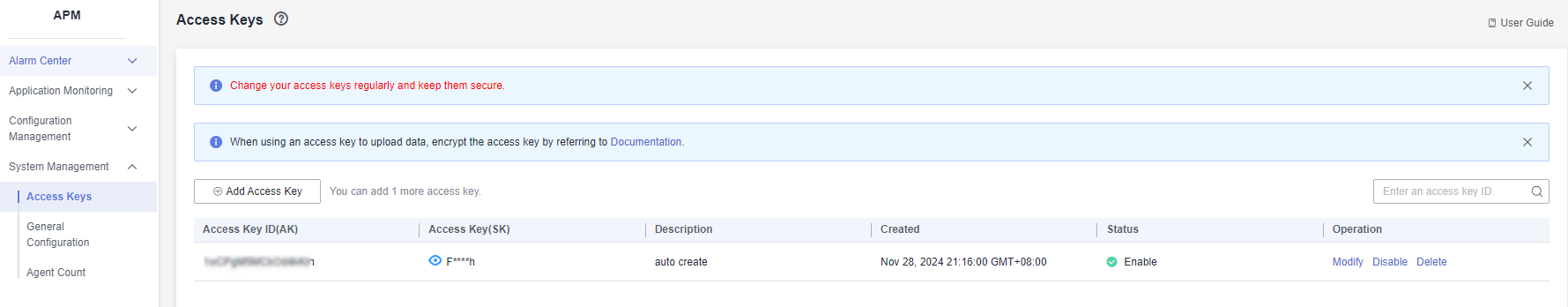

Figure 1 Obtaining an AK/SK
Usage Instruction
APM only supports Java applications deployed on CCE. Table 1 describes the parameters.
Name | Description |
|---|---|
Probe | Select a target probe. Options: Disable/APM probe. |
Probe Version | Version of the probe. You are advised to select a probe type based on the CPU architecture of the node where the workload is located. |
Probe Upgrade Policy | Policy for the probe upgrade. The default value is Auto upgrade upon restart.
|
APM Environment | Enter an APM environment name. This parameter is optional. |
APM App | Select an existing APM application. |
Sub-app | Enter an APM sub-application. This parameter is optional. |
Access Key | The system automatically obtains the APM key. For details, see Prerequisites. |
