Viewing Kafka Topic Details

Procedure

1. Log in to the console.
2. Click in the upper left corner to select a region.
   Note

   Select the region where your Kafka instance is located.

3. Click and choose Application > Distributed Message Service for Kafka to open the console of DMS for Kafka.
4. Click the desired Kafka instance to view its details.
5. In the navigation pane, choose Topics.
6. Click a topic to view its details.

   The general information, subscriptions, partitions, and producers are displayed.

   • General information: topic name, brokers, partitions, and creation time
     Note

     • For topics created much earlier, creation time is not displayed on the topic details page. See the console.
     • For topics automatically created, and created by commands or code on the client, creation time is not displayed on the topic details page.
   • Subscriptions: consumer group name and status, Coordinator (ID), and accumulated messages

     Click the name of a consumer group name.

     Note

     If an instance contains more than 10,000 consumer groups, the subscription relationships of topics cannot be queried.

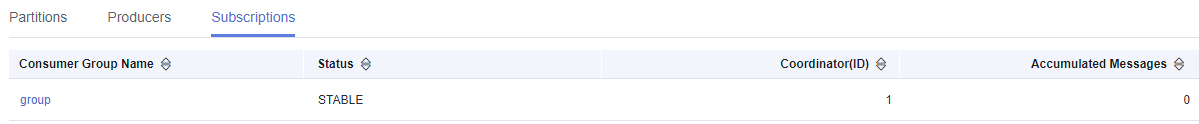

     Figure 1 Subscriptions



   • Partitions: partition No., minimum offset, maximum offset, number of messages, and message update time

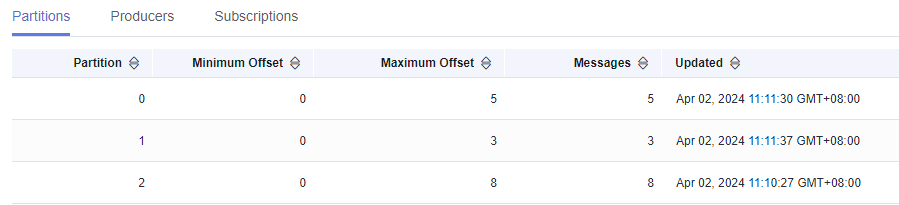

     Figure 2 Partitions



   • Producers: broker address, producer address, and producer connected time
     Note

     • The producer information is displayed only when a producer is producing messages into topics.
     • For topics created much earlier, Producer tab page is not displayed on the topic details page. See the console.

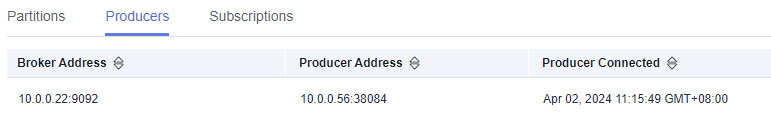

     Figure 3 Producers
