Viewing and Resetting Kafka Consumption Offsets

Note

Prerequisites

Viewing Consumer Offsets (Console)

1. Log in to the console.
2. Click in the upper left corner to select a region.
   Note

   Select the region where your Kafka instance is located.

3. Click and choose Application > Distributed Message Service for Kafka to open the console of DMS for Kafka.
4. Click the desired Kafka instance to view the instance details.
5. In the navigation pane, choose Consumer Groups.
6. Click the name of the desired consumer group.
7. On the Consumer Offset tab page, view the list of topics that the consumer group has subscribed to, total number of messages accumulated in the topic, consumption progress in each partition of the topic (number of accumulated messages, offset, latest offset, consumer ID, consumer address, and client ID).

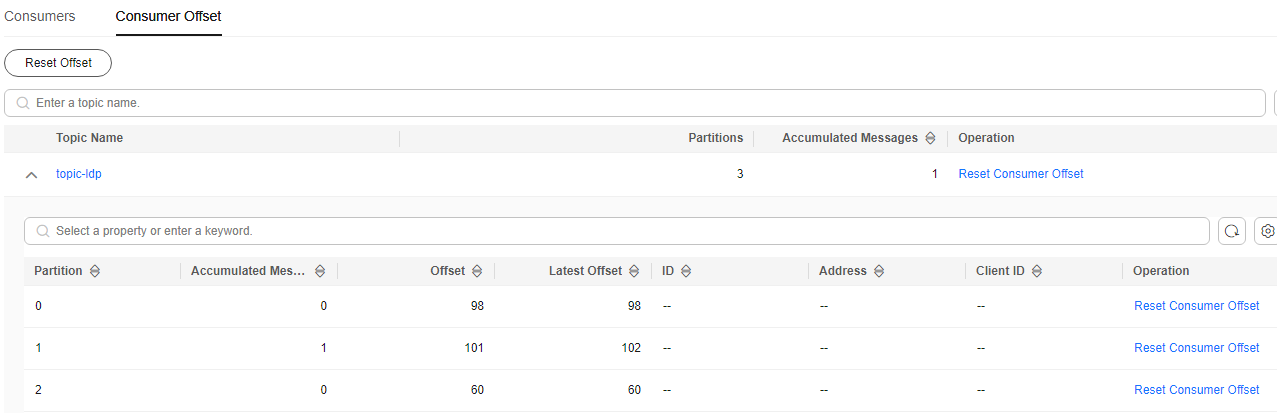

   Figure 1 Consumer offsets




8. (Optional) To query the consumer offsets of a specific topic, enter the topic name in the search box and press Enter.

Viewing Consumer Offsets (Kafka CLI)

• For a Kafka instance with ciphertext access disabled, run the following command in the /bin directory of the Kafka client:

  ./kafka-consumer-groups.sh --bootstrap-server ${connection-address} --offsets --describe --all-groups



  Parameter description: connection-address indicates the Kafka instance address, which can be obtained in the Connection area on the Basic Information page on the Kafka console.

  Example:

  [root@ecs-kafka bin]# ./kafka-consumer-groups.sh --bootstrap-server 192.168.xx.xx:9092,192.168.xx.xx:9092,192.168.xx.xx:9092 --offsets --describe --all-groups

  Consumer group '__consumer-group-dial-test' has no active members.

  GROUP                      TOPIC           PARTITION  CURRENT-OFFSET  LOG-END-OFFSET  LAG             CONSUMER-ID     HOST            CLIENT-ID
  __consumer-group-dial-test __dms_dial_test 0          350             350             0               -               -               -
  __consumer-group-dial-test __dms_dial_test 1          350             350             0               -               -               -
  __consumer-group-dial-test __dms_dial_test 2          350             350             0               -               -               -

  Consumer group 'test' has no active members.

  GROUP           TOPIC           PARTITION  CURRENT-OFFSET  LOG-END-OFFSET  LAG             CONSUMER-ID     HOST            CLIENT-ID
  test            topic-01        0          5               5               0               -               -               -
  test            topic-01        1          3               3               0               -               -               -
  test            topic-01        2          10              10              0               -               -               -
  [root@ecs-kafka bin]#



• For a Kafka instance with ciphertext access enabled, do as follows:
  1. (Optional) If the username and password, and the SSL certificate has been configured, skip this step and go to 2. Otherwise, do as follows:

     Create the ssl-user-config.properties file in the /config directory of the Kafka client. Add the username and password, and the SSL certificate configuration by referring to 3.

  2. Run the following command in the /bin directory of the Kafka client:

     ./kafka-consumer-groups.sh --bootstrap-server ${connection-address} --offsets --describe --all-groups --command-config ../config/ssl-user-config.properties



     Parameter description: connection-address indicates the Kafka instance address, which can be obtained in the Connection area on the Basic Information page on the Kafka console.

     Example:

     [root@ecs-kafka bin]# ./kafka-consumer-groups.sh --bootstrap-server 192.168.xx.xx:9093,192.168.xx.xx:9093,192.168.xx.xx:9093 --offsets --describe --all-groups --command-config ../config/ssl-user-config.properties

     Consumer group '__consumer-group-dial-test' has no active members.

     GROUP                      TOPIC           PARTITION  CURRENT-OFFSET  LOG-END-OFFSET  LAG             CONSUMER-ID     HOST            CLIENT-ID
     __consumer-group-dial-test __dms_dial_test 0          347             347             0               -               -               -
     __consumer-group-dial-test __dms_dial_test 1          347             347             0               -               -               -
     __consumer-group-dial-test __dms_dial_test 2          347             347             0               -               -               -

     Consumer group 'test' has no active members.

     GROUP           TOPIC           PARTITION  CURRENT-OFFSET  LOG-END-OFFSET  LAG             CONSUMER-ID     HOST            CLIENT-ID
     test            topic-01        0          5               5               0               -               -               -
     test            topic-01        1          3               3               0               -               -               -
     test            topic-01        2          10              10              0               -               -               -
     [root@ecs-kafka bin]#



Resetting Consumer Offsets

1. Log in to the console.
2. Click in the upper left corner to select a region.
   Note

   Select the region where your Kafka instance is located.

3. Click and choose Application > Distributed Message Service for Kafka to open the console of DMS for Kafka.
4. Click the desired Kafka instance to view the instance details.
5. In the navigation pane, choose the Consumer Groups tab.
6. Click the name of the desired consumer group.
7. On the Consumer Offset tab page, you can perform the following operations:
   • To reset the consumer offset of all partitions of a single topic, click Reset Consumer Offset in the row containing the desired topic.
   • To reset the consumer offset of a single partition of a single topic, click Reset Consumer Offset in the row containing the desired partition.
   • To reset the consumer offset of all partitions of all topics, click Reset Consumer Offset.

8. In the displayed Reset Consumer Offset dialog box, set the parameters by referring to Table 1.

   Table 1 Parameters for resetting the consumer offset

   Parameter	Description
   Reset By	You can reset an offset by: Time: Reset the offset to the specified time. Offset: Reset the offset to the specified position. If you reset offsets in batches, they can only be reset to the specified time.
   Time	Set this parameter if Reset By is set to Time. Select a time point. After the reset is complete, retrieval starts from this time point. Earliest: earliest offset Custom: a custom time point Latest: latest offset
   Offset	Set this parameter if Reset By is set to Offset. Enter an offset, which is greater than or equal to 0. After the reset is complete, retrieval starts from this offset.

9. Click OK.
10. Click Yes in the confirmation dialog box. The consumer offset is reset.
