Application Scenarios

Allowing a Private Network to Access the Internet Using SNAT

If your servers in a VPC need to access the Internet, you can configure SNAT rules to let these servers use EIPs to access the Internet without exposing their private IP addresses. You can configure only one SNAT rule for each subnet in a VPC and select one or more EIPs for each SNAT rule. NAT Gateway provides different numbers of connections, and you can create multiple SNAT rules to meet your service requirements.

Figure 1 shows how servers in a VPC access the Internet using SNAT.

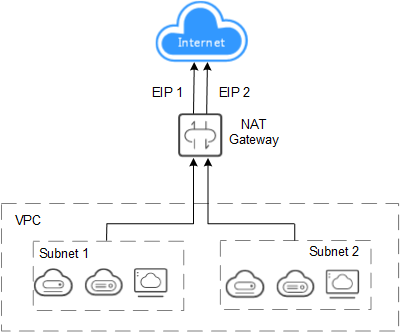

Figure 1 Allowing a private network to access the Internet using SNAT


Allowing Internet Users to Access a Service in a Private Network Using DNAT

DNAT rules enable servers in a VPC to provide services accessible from the Internet.

After receiving requests from a specific port over a specific protocol, the public NAT gateway can forward the requests to a specific port of a server through port mapping. The NAT gateway can also forward all requests destined for an EIP to a specific server through IP address mapping.

One DNAT rule can be configured for each server. If there are multiple servers, you can create multiple DNAT rules to map one or more EIPs to the private IP addresses of these servers.

Figure 2 shows how servers in a VPC provide services accessible from the Internet using DNAT.

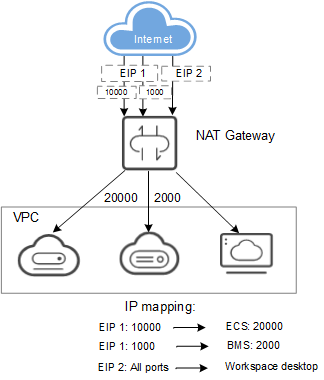

Figure 2 Allowing Internet users to access a service in a private network using DNAT


Allowing On-premises Servers to Communicate with the Internet

In certain Internet, gaming, e-commerce, and financial scenarios, a large number of servers in a private cloud are connected to a VPC through Direct Connect or VPN. If such servers need secure, high-speed Internet access or need to provide services accessible from the Internet, you can deploy a NAT gateway and configure SNAT and DNAT rules to meet their requirements. Typical scenarios include Internet, games, e-commerce, and finance across clouds.

Figure 3 shows how to communicate with the Internet at a high speed.

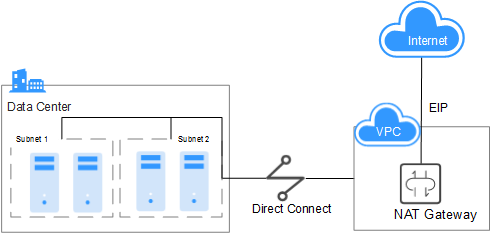

Figure 3 Allowing on-premises servers to communicate with the Internet


Setting up a Highly Available System by Adding Multiple EIPs to an SNAT Rule

EIPs may be attacked. To improve system reliability, you can add multiple EIPs when configuring an SNAT rule so that if one EIP is attacked, another EIP can be used to ensure service continuity.

Each SNAT rule can have up to 20 EIPs. If an SNAT rule has multiple EIPs, the system randomly selects one EIP for servers to use to access the Internet.

If any EIP is blocked or attacked, manually remove it from the EIP pool.

Figure 4 shows a highly available system using an SNAT rule.

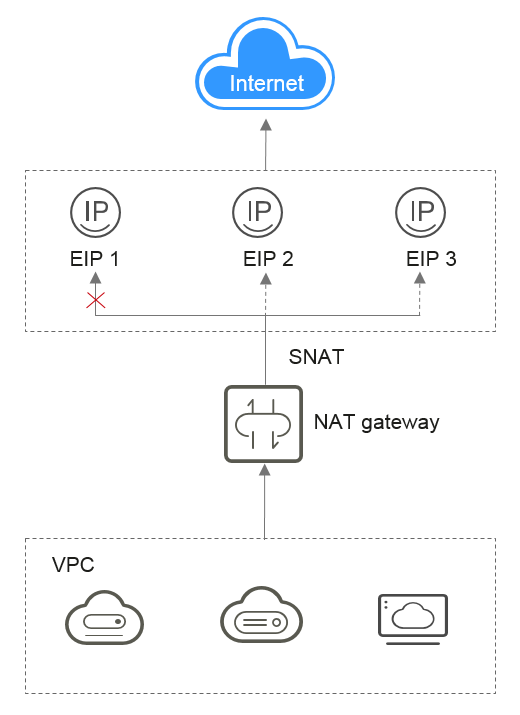

Figure 4 Setting up a highly available system by adding multiple EIPs to an SNAT rule
