Collecting Audit Logs

CCE allows you to collect the logs of master nodes. On the Kubernetes Audit Logs tab of Logging, you can determine whether to report audit logs to LTS.

Constraints

  • The cluster version must be v1.21.7-r0 or later, v1.23.5-r0 or later, or 1.25.
  • There is required LTS resource quota.

Audit Logs

Table 1 Audit logs

Log Type

Component

Log Stream

Description

Kubernetes audit logs

audit

audit-{{clusterID}}

An audit log is a chronological record of user operations on Kubernetes APIs and control plane activities for security.

Enabling Kubernetes Audit Logging

Enabling audit logging during cluster creation

  1. Log in to the CCE console.
  2. Click Buy Cluster. Then, configure the parameters and click Next: Select Add-on.
  3. On the displayed page, select Cloud Native Log Collection and click Next: Add-on Configuration.
  4. On the displayed page, select Kubernetes Audit Logs for Cloud Native Log Collection.

  5. Click Next: Confirm configuration.

Enabling audit logging for an existing cluster

  1. Log in to the CCE console and click the cluster name to access the cluster console. In the navigation pane, choose Logging.
  2. Click the Kubernetes Audit Logs tab and modify the settings in Logging Settings.

    Figure 1 Enabling audit logging for an existing cluster


  3. Determine whether to enable logging for the audit component. If yes, click .

Viewing Kubernetes Audit Logs

Viewing Kubernetes audit logs on the CCE console

  1. Log in to the CCE console and click the cluster name to access the cluster console. In the navigation pane, choose Logging.
  2. Click the Kubernetes Audit Logs tab to view audit logs in the cluster.

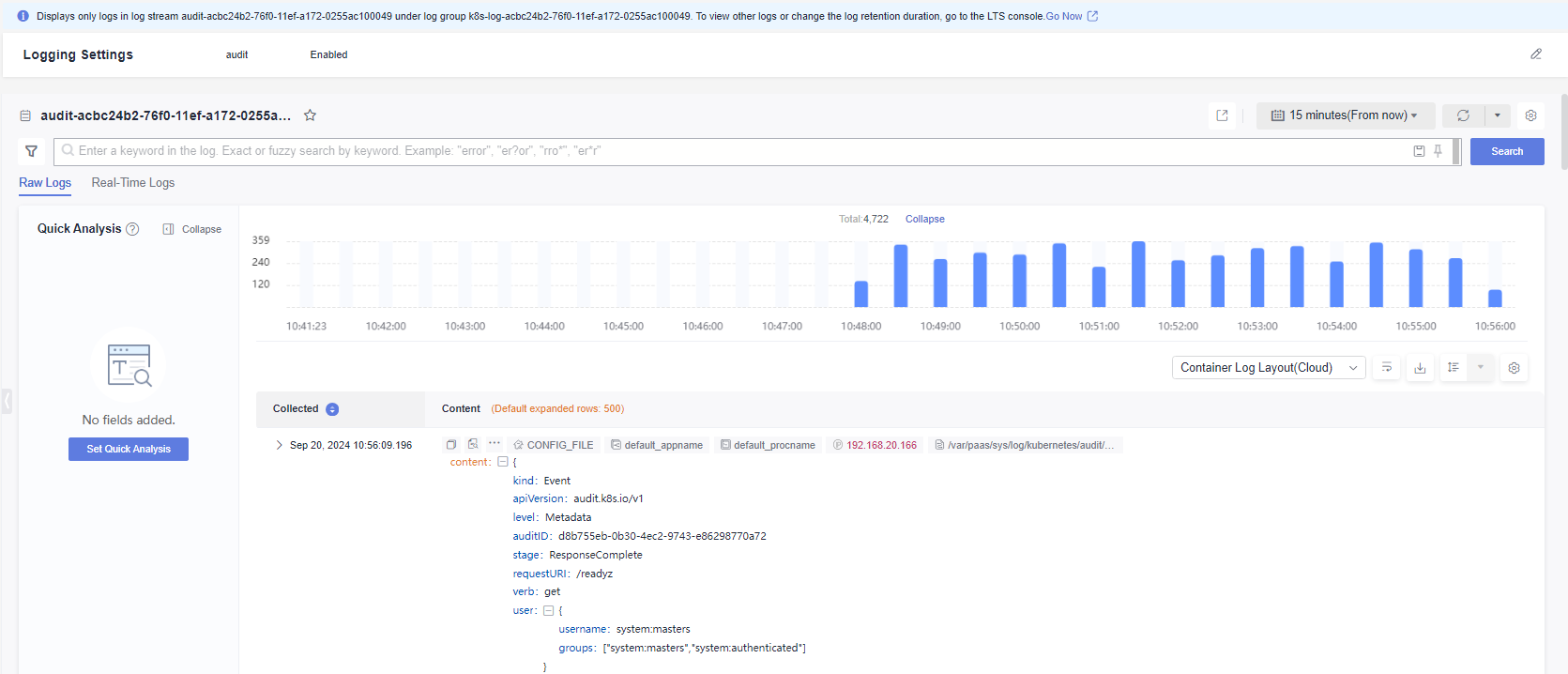

    Figure 2 Viewing Kubernetes audit logs on the CCE console


Viewing Kubernetes audit logs on the TLS console

  1. Log in to the LTS console and choose Log Management.
  2. Search for the log group by cluster ID and click the log group name to view the log streams.

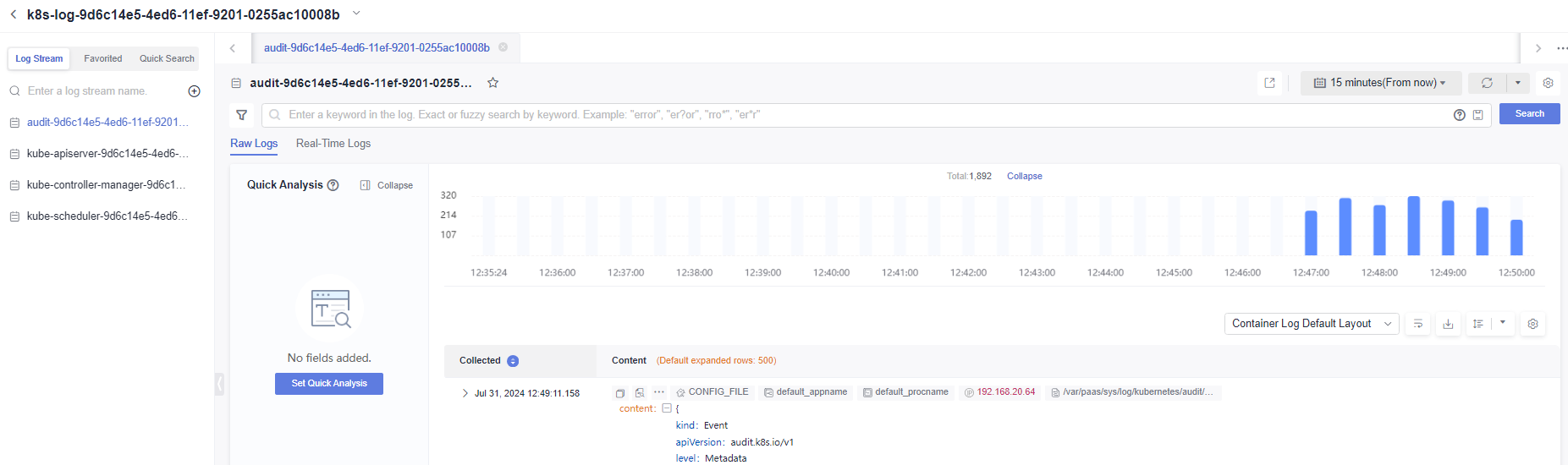

    Figure 3 Viewing Kubernetes audit logs on the TLS console


Disabling Kubernetes Audit Logging

  1. Log in to the CCE console and click the cluster name to access the cluster console. In the navigation pane, choose Logging.
  2. Click the Kubernetes Audit Logs tab.
  3. Disable the audit component and click .
    Note

    After you disable audit logging, logs are no longer written to the original log stream, but the existing logs will not be deleted and expenditures may be incurred for this.
