Creating a LoadBalancer Ingress Using kubectl

• An available workload has been deployed in the cluster for external access. If no workload is available, deploy a workload by referring to Creating a Deployment, Creating a StatefulSet, or Creating a DaemonSet.
• A Service for external access has been configured for the workload. Services Supported by LoadBalancer Ingresses lists the Service types supported by LoadBalancer ingresses.

• Only clusters v1.17 or later support dedicated load balancers.
• It is recommended that other resources not use the load balancer automatically created by an ingress. Otherwise, the load balancer will be occupied when the ingress is deleted, resulting in residual resources.
• After an ingress is created, upgrade and maintain the configuration of the selected load balancers on the CCE console. Do not modify the configuration on the ELB console. Otherwise, the ingress service may be abnormal.
• The URL registered in an ingress forwarding policy must be the same as the URL used to access the backend Service. Otherwise, a 404 error will be returned.
• In an IPVS cluster, if the LoadBalancer ingress and Service share the same load balancer, the ingress cannot be accessed from within the cluster's nodes and containers. This is because kube-proxy binds the LoadBalancer Service address to the ipvs-0 bridge, which intercepts the ELB traffic. Use different load balancers for the LoadBalancer ingress and Service.
• A dedicated load balancer must be of the application type (HTTP/HTTPS) and support private networks (with a private IP address).
• If multiple ingresses access the same ELB port in a cluster, the listener configuration items (such as the certificate associated with the listener and the HTTP/2 attribute of the listener) are subject to the configuration of the first ingress.

The following describes how to run the kubectl command to automatically create a load balancer when creating an ingress.

1. Use kubectl to access the cluster. For details, see Accessing a Cluster Using kubectl.
2. Create a YAML file named ingress-test.yaml. You can change the file name if you want to.

   vi ingress-test.yaml



   Note

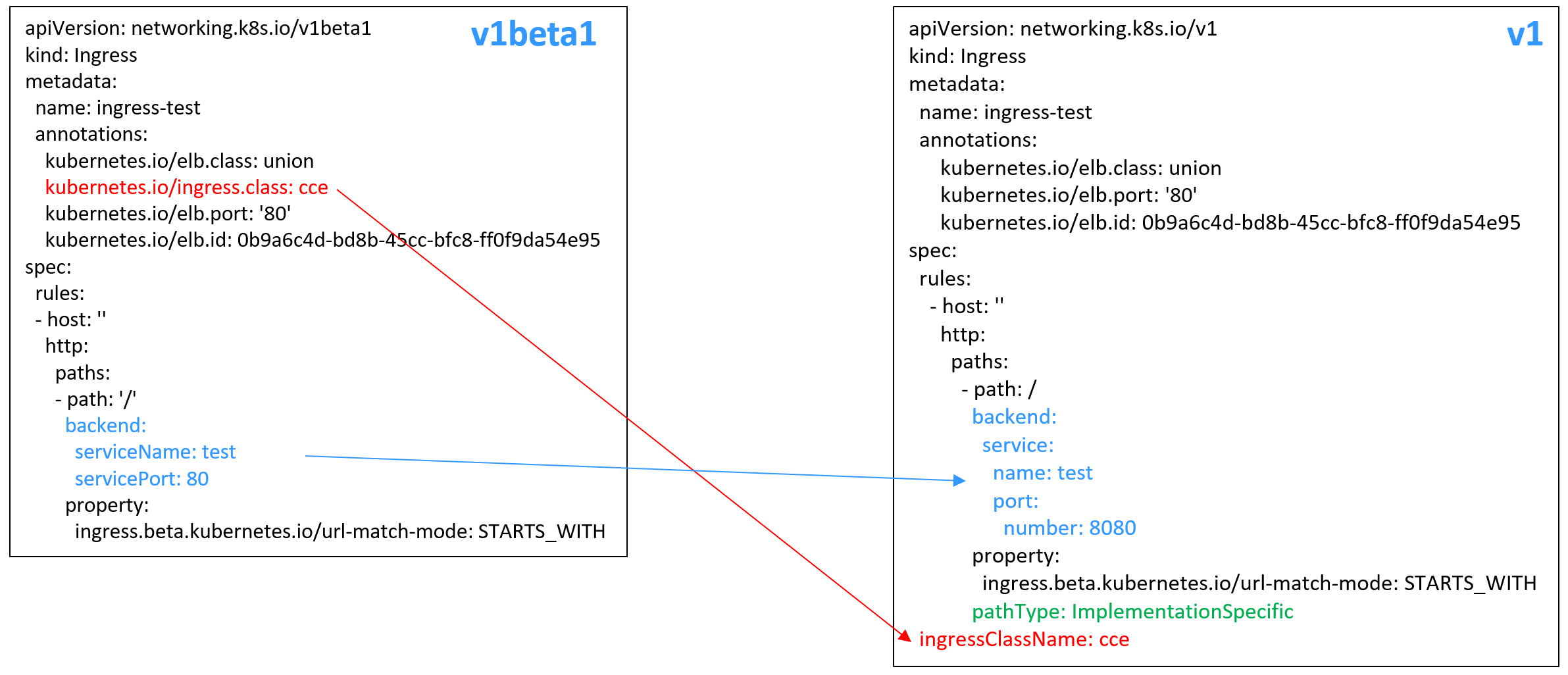

   Starting from cluster v1.23, the ingress version is switched from networking.k8s.io/v1beta1 to networking.k8s.io/v1. For details about the differences between v1 and v1beta1, see Ingress API Version Upgrade in CCE Clusters v1.23.

   Example of a shared load balancer (public network access) for clusters v1.23 or later:

   apiVersion: networking.k8s.io/ v1
   kind: Ingress
   metadata:
     name: ingress-test
     annotations:
        kubernetes.io/elb.class: union
       kubernetes.io/elb.port: '80'
        kubernetes.io/elb.autocreate:
          '{
              "type":"public",
              "bandwidth_name":"cce-bandwidth-******",
              "bandwidth_chargemode":"bandwidth"  ,
              "bandwidth_size":5,
              "bandwidth_sharetype":"PER",
              "vip_subnet_cidr_id": "*****",
              "vip_address": "**.**.**.**",
              "eip_type":"5_bgp"
            }'
       kubernetes.io/elb.tags: key1=value1,key2=value2           # ELB resource tags
   spec:
     rules:
     - host: ''
       http:
         paths:
         - path: '/'
           backend:
             service:
               name: <your_service_name>  # Replace it with the name of your target Service.
               port:
                 number: <your_service_port>  # Replace it with the port number of your target Service.
           property:
             ingress.beta.kubernetes.io/url-match-mode: STARTS_WITH
           pathType: ImplementationSpecific
      ingressClassName: cce     # A LoadBalancer ingress is used.



   Example of a shared load balancer (public network access) for clusters v1.21 or earlier:

   apiVersion: networking.k8s.io/ v1beta1
   kind: Ingress
   metadata:
     name: ingress-test
     annotations:
        kubernetes.io/elb.class: union
        kubernetes.io/ingress.class: cce     # A LoadBalancer ingress is used.
       kubernetes.io/elb.port: '80'
        kubernetes.io/elb.autocreate:
          '{
              "type":"public",
              "bandwidth_name":"cce-bandwidth-******",
              "bandwidth_chargemode":"bandwidth"  ,
              "bandwidth_size":5,
              "bandwidth_sharetype":"PER",
              "eip_type":"5_bgp"
            }'
       kubernetes.io/elb.tags: key1=value1,key2=value2           # ELB resource tags
   spec:
     rules:
     - host: ''
       http:
         paths:
         - path: '/'
           backend:
             serviceName: <your_service_name>  # Replace it with the name of your target Service.
             servicePort: <your_service_port>  # Replace it with the port number of your target Service.
           property:
             ingress.beta.kubernetes.io/url-match-mode: STARTS_WITH



   Example of a dedicated load balancer (public network access) for clusters v1.23 or later:

   apiVersion: networking.k8s.io/ v1
   kind: Ingress
   metadata:
     name: ingress-test
     namespace: default
     annotations:
        kubernetes.io/elb.class:   performance
       kubernetes.io/elb.port: '80'
       kubernetes.io/elb.autocreate:
         '{
              "type": "public",
              "bandwidth_name": "cce-bandwidth-******",
              "bandwidth_chargemode": "bandwidth"  ,
              "bandwidth_size": 5,
              "bandwidth_sharetype": "PER",
              "eip_type": "5_bgp",
              "vip_subnet_cidr_id": "*****",
              "vip_address": "**.**.**.**",
              "elb_virsubnet_ids":["*****"],
              "available_zone": [
                  "ru-moscow-1a"
              ],
              "l7_flavor_name": "L7_flavor.elb.s1.small"
          }'
       kubernetes.io/elb.tags: key1=value1,key2=value2           # ELB resource tags
   spec:
     rules:
     - host: ''
       http:
         paths:
         - path: '/'
           backend:
             service:
               name: <your_service_name>  # Replace it with the name of your target Service.
               port:
                 number: <your_service_port>  # Replace it with the port number of your target Service.
           property:
             ingress.beta.kubernetes.io/url-match-mode: STARTS_WITH
           pathType: ImplementationSpecific
      ingressClassName: cce



   Example of a dedicated load balancer (public network access) for clusters v1.21 or earlier:

   apiVersion: networking.k8s.io/ v1beta1
   kind: Ingress
   metadata:
     name: ingress-test
     namespace: default
     annotations:
        kubernetes.io/elb.class:   performance
        kubernetes.io/ingress.class: cce
       kubernetes.io/elb.port: '80'
       kubernetes.io/elb.autocreate:
         '{
              "type": "public",
              "bandwidth_name": "cce-bandwidth-******",
              "bandwidth_chargemode": "bandwidth"  ,
              "bandwidth_size": 5,
              "bandwidth_sharetype": "PER",
              "eip_type": "5_bgp",
              "elb_virsubnet_ids":["*****"],
              "available_zone": [
                  "ru-moscow-1a"
              ],
              "l7_flavor_name": "L7_flavor.elb.s1.small"
          }'
       kubernetes.io/elb.tags: key1=value1,key2=value2           # ELB resource tags
   spec:
     rules:
     - host: ''
       http:
         paths:
         - path: '/'
           backend:
             serviceName: <your_service_name>  # Replace it with the name of your target Service.
             servicePort: <your_service_port>  # Replace it with the port number of your target Service.
           property:
             ingress.beta.kubernetes.io/url-match-mode: STARTS_WITH



   Table 1 Key parameters

   Parameter	Mandatory	Type	Description
   kubernetes.io/elb.class	Yes	String	Select a proper load balancer type. This parameter cannot be modified after the ingress is created. union: shared load balancer performance: dedicated load balancer
   kubernetes.io/ingress.class	Yes (only for clusters v1.21 or earlier)	String	cce: A proprietary LoadBalancer ingress is used. This parameter is mandatory when you create an ingress.
   ingressClassName	Yes (only for clusters v1.23 or later)	String	cce: A proprietary LoadBalancer ingress is used. This parameter is mandatory when you create an ingress.
   kubernetes.io/elb.port	No	String	This parameter indicates the external port registered with the address of the LoadBalancer Service. The value ranges from 1 to 65535. The default value is 80 for HTTP and 443 for HTTPS. NOTE: Some ports on a shared load balancer are highly risky and blocked by default, for example, port 21.
   kubernetes.io/elb.subnet-id	None	String	ID of the subnet where the cluster is located. The value can contain 1 to 100 characters. Mandatory when a cluster v1.11.7-r0 or earlier is to be automatically created. Optional for clusters of a version later than v1.11.7-r0. It is left blank by default.
   kubernetes.io/elb.enterpriseID	No	String	This parameter is available in Kubernetes clusters v1.15 or later. In Kubernetes clusters earlier than v1.15, load balancers are created in the default project by default. This parameter specifies the ID of the enterprise project where a load balancer is created. It is applicable only to enterprise accounts with enterprise projects enabled. After an enterprise project ID is selected, resources can be created in the ELB enterprise project. The value contains 1 to 100 characters. How to obtain: Log in to the EPS console, click the name of the target enterprise project. On the enterprise project details page, find the ID field and copy the ID.
   kubernetes.io/elb.autocreate	Yes	elb.autocreate object	Whether to automatically create a load balancer associated with an ingress. For details about the field description, see Table 2. This parameter cannot be modified after the ingress is created. Example: Automatically created dedicated load balancer with an EIP bound: '{"type":"public","bandwidth_name":"cce-bandwidth-1741230802502","bandwidth_chargemode":"bandwidth","bandwidth_size":5,"bandwidth_sharetype":"PER","eip_type":"5_bgp","available_zone":["*****"],"elb_virsubnet_ids":["*****"],"l7_flavor_name":"L7_flavor.elb.pro.max","l4_flavor_name":"","vip_subnet_cidr_id":"*****"}' Automatically created dedicated load balancer with no EIP bound: '{"type":"inner","available_zone":["*****"],"elb_virsubnet_ids":["*****"],"l7_flavor_name":"L7_flavor.elb.pro.max","l4_flavor_name":"","vip_subnet_cidr_id":"*****"}' Automatically created shared load balancer with an EIP bound: '{"type":"public","bandwidth_name":"cce-bandwidth-1551163379627","bandwidth_chargemode":"bandwidth","bandwidth_size":5,"bandwidth_sharetype":"PER","eip_type":"5_bgp","name":"james"}' Automatically created shared load balancer with no EIP bound: '{"type":"inner", "name": "A-location-d-test"}'
   kubernetes.io/elb.tags	No	String	Whether to add resource tags to a load balancer. This function is available only when the load balancer is automatically created, and the cluster is of v1.23.11-r0, v1.25.6-r0, v1.27.3-r0, or later. A tag is in the format of "key=value". Use commas (,) to separate multiple tags. A load balancer supports a maximum of 20 resource tags. CCE automatically adds one tag, reducing the available quota to 19.
   host	No	String	Domain name for accessing the Service. By default, this parameter is left blank, and the domain name needs to be fully matched. Ensure that the domain name has been registered and licensed. Once a forwarding policy is configured with a domain name specified, you must use the domain name for access.
   path	Yes	String	User-defined route path. All external access requests must match host and path. NOTE: The access path added here must exist in the backend application. Otherwise, the forwarding fails. For example, the default access URL of the Nginx application is /usr/share/nginx/html. When adding /test to the ingress forwarding policy, ensure the access URL of your Nginx application contains /usr/share/nginx/html/test. Otherwise, error 404 will be returned.
   ingress.beta.kubernetes.io/url-match-mode	No	String	Route matching policy. Default: STARTS_WITH (prefix match) Options: EQUAL_TO: exact match STARTS_WITH: prefix match REGEX: regular expression match
   pathType	Yes	String	Path type. This field is supported only by clusters v1.23 or later. ImplementationSpecific: The matching method depends on Ingress Controller. The matching method defined by ingress.beta.kubernetes.io/url-match-mode is used in CCE. Exact: exact matching of the URL, which is case-sensitive. Prefix: prefix matching, which is case-sensitive. With this method, the URL path is separated into multiple elements by slashes (/) and the elements are matched one by one. If each element in the URL matches the path, the subpaths of the URL can be routed normally. NOTE: During prefix matching, each element must be exactly matched. If the last element of the URL is the substring of the last element in the request path, no matching is performed. For example, /foo/bar matches /foo/bar/baz but does not match /foo/barbaz. When elements are separated by slashes (/), if the URL or request path ends with a slash (/), the slash (/) at the end is ignored. For example, /foo/bar matches /foo/bar/. See examples of ingress path matching.

   Table 2 elb.autocreate data structure

   Parameter	Mandatory	Type	Description
   name	No	String	Name of the automatically created load balancer. The value can contain 1 to 64 characters. Only letters, digits, underscores (_), hyphens (-), and periods (.) are allowed. Default: cce-lb+service.UID
   type	No	String	Network type of the load balancer. public: public network load balancer inner: private network load balancer Default: inner
   bandwidth_name	Yes for public network load balancers	String	Bandwidth name. The default value is cce-bandwidth-******. The value can contain 1 to 64 characters. Only letters, digits, underscores (_), hyphens (-), and periods (.) are allowed.
   bandwidth_chargemode	Yes for public network load balancers	String	Bandwidth mode. bandwidth: billed by bandwidth traffic: billed by traffic
   bandwidth_size	Yes for public network load balancers	Integer	Bandwidth size. The value ranges from 1 Mbit/s to 2000 Mbit/s by default. Configure this parameter based on the bandwidth range allowed in your region. The minimum increment for bandwidth adjustment varies depending on the bandwidth range. The minimum increment is 1 Mbit/s if the allowed bandwidth does not exceed 300 Mbit/s. The minimum increment is 50 Mbit/s if the allowed bandwidth ranges from 300 Mbit/s to 1000 Mbit/s. The minimum increment is 500 Mbit/s if the allowed bandwidth exceeds 1000 Mbit/s.
   bandwidth_sharetype	Yes for public network load balancers	String	Bandwidth sharing mode. PER: dedicated bandwidth
   eip_type	Yes for public network load balancers	String	EIP type. 5_bgp: dynamic BGP The types vary by region. For details, see the EIP console.
   vip_subnet_cidr_id	No	String	The ID of the IPv4 subnet where the load balancer resides. This subnet is used to allocate IP addresses for the load balancer to provide external services. The IPv4 subnet must belong to the cluster's VPC. If this parameter is not specified, the load balancer and the cluster will be in the same subnet by default. This field can be specified only for clusters v1.21 or later. How to obtain: Log in to the VPC console. In the navigation pane, choose Subnets. Filter the target subnet by the cluster's VPC name, click the subnet name, and copy the IPv4 Subnet ID on the Summary tab.
   ipv6_vip_virsubnet_id	No	String	The ID of the IPv6 subnet where the load balancer is deployed. IPv6 must be enabled for the subnet. This parameter is available only for dedicated load balancers. How to obtain: Log in to the VPC console. In the navigation pane, choose Subnets. Filter the target subnet by the cluster's VPC name, click the subnet name, and copy the Network ID on the Summary tab.
   elb_virsubnet_ids	No	Array of strings	The network ID of the subnet where the load balancer is located. This subnet is used to allocate IP addresses for accessing the backend server. If this parameter is not specified, the subnet specified by vip_subnet_cidr_id will be used by default. Load balancers occupy varying numbers of subnet IP addresses based on their specifications. Do not use the subnet CIDR blocks of other resources (such as clusters or nodes) as the load balancer's CIDR block. This parameter is available only for dedicated load balancers. Example: "elb_virsubnet_ids": [ "14567f27-8ae4-42b8-ae47-9f847a4690dd" ] How to obtain: Log in to the VPC console. In the navigation pane, choose Subnets. Filter the target subnet by the cluster's VPC name, click the subnet name, and copy the Network ID on the Summary tab.
   vip_address	No	String	Private IP address of the load balancer. Only IPv4 addresses are supported. The IP address must be in the ELB CIDR block. If this parameter is not specified, an IP address will be automatically assigned from the ELB CIDR block. This parameter is only available in clusters v1.23.11-r0, v1.25.6-r0, v1.27.3-r0, or later versions.
   available_zone	Yes	Array of strings	AZ where the load balancer is located. This parameter is available only for dedicated load balancers.
   l4_flavor_name	No	String	Flavor name of the Layer 4 load balancer. This parameter is mandatory when TCP or UDP is used. Elastic: applies to fluctuating traffic, billed based on total traffic. Clusters v1.21.10-r10, v1.23.8-r10, v1.25.3-r10, and later versions support elastic specifications. Fixed: applies to stable traffic, billed based on specifications. This parameter is available only for dedicated load balancers.
   l7_flavor_name	No	String	Flavor name of the Layer 7 load balancer. This parameter is mandatory when HTTP is used. Elastic: applies to fluctuating traffic, billed based on total traffic. Clusters v1.21.10-r10, v1.23.8-r10, v1.25.3-r10, and later versions support elastic specifications. Fixed: applies to stable traffic, billed based on specifications. This parameter is available only for dedicated load balancers. Its value must match that of l4_flavor_name, both of which must be either elastic flavors or fixed flavors.

3. Create an ingress.

   kubectl create -f ingress-test.yaml



   If information similar to the following is displayed, the ingress has been created:

   ingress/ingress-test created



4. Check the created ingress.

   kubectl get ingress



   If information similar to the following is displayed, the ingress has been created:

   NAME          CLASS    HOSTS     ADDRESS          PORTS   AGE
   ingress-test  cce      *         121.**.**.**     80      10s



5. Enter http://121.**.**.**:80 in the address box of the browser to access the workload (for example, Nginx workload).

   121.**.**.** indicates the IP address of the unified load balancer.

CCE allows you to connect to an existing load balancer when creating an ingress.

1. Use kubectl to access the cluster. For details, see Accessing a Cluster Using kubectl.
2. Create a YAML file named ingress-test.yaml. You can change the file name if you want to.

   vi ingress-test.yaml



   Note

   • Starting from cluster v1.23, the ingress version is switched from networking.k8s.io/v1beta1 to networking.k8s.io/v1. For details about the differences between v1 and v1beta1, see Ingress API Version Upgrade in CCE Clusters v1.23.
   • An existing dedicated load balancer must be of the application type (HTTP/HTTPS) and support private networks (with a private IP address).

   If the cluster version is 1.23 or later, the YAML file configuration is as follows:

   apiVersion: networking.k8s.io/ v1
   kind: Ingress
   metadata:
     name: ingress-test
     annotations:
        kubernetes.io/elb.id: <your_elb_id>   # Replace it with the ID of your existing load balancer.
        kubernetes.io/elb.ip: <your_elb_ip>   # Replace it with the IP address of your existing load balancer.
        kubernetes.io/elb.class:   performance   # Load balancer type
       kubernetes.io/elb.port: '80'
   spec:
     rules:
     - host: ''
       http:
         paths:
         - path: '/'
           backend:
             service:
               name: <your_service_name>  # Replace it with the name of your target Service.
               port:
                 number: 8080             # Replace 8080 with the port number of your target Service.
           property:
             ingress.beta.kubernetes.io/url-match-mode: STARTS_WITH
           pathType: ImplementationSpecific
      ingressClassName: cce



   If the cluster version is 1.21 or earlier, the YAML file configuration is as follows:

   apiVersion: networking.k8s.io/ v1beta1
   kind: Ingress
   metadata:
     name: ingress-test
     annotations:
        kubernetes.io/elb.id: <your_elb_id>   # Replace it with the ID of your existing load balancer.
        kubernetes.io/elb.ip: <your_elb_ip>   # Replace it with the IP address of your existing load balancer.
        kubernetes.io/elb.class:   performance   # Load balancer type
       kubernetes.io/elb.port: '80'
        kubernetes.io/ingress.class: cce
   spec:
     rules:
     - host: ''
       http:
         paths:
         - path: '/'
           backend:
             serviceName: <your_service_name>  # Replace it with the name of your target Service.
             servicePort: 80
           property:
             ingress.beta.kubernetes.io/url-match-mode: STARTS_WITH



   Table 3 Key parameters

   Parameter	Mandatory	Type	Description
   kubernetes.io/elb.id	No	String	ID of a load balancer. The value can contain 1 to 100 characters. Use either this parameter or kubernetes.io/elb.ip. If they conflict, kubernetes.io/elb.id will take precedence. This parameter cannot be modified after the ingress is created. How to obtain: On the management console, click Service List, and choose Networking > Elastic Load Balance. Click the name of the target load balancer. On the Summary tab page, find and copy the ID.
   kubernetes.io/elb.ip	No	String	IP address of a load balancer. Use either this parameter or kubernetes.io/elb.id. If they conflict, kubernetes.io/elb.id will take precedence. This parameter cannot be modified after the ingress is created. When creating an ingress, specify a public or private IP address for a shared load balancer. For a dedicated load balancer, only a private IP address can be specified.
   kubernetes.io/elb.class	Yes	String	Load balancer type. This parameter cannot be modified after the ingress is created. union: shared load balancer performance: dedicated load balancer, which can be used only in clusters v1.17 and later. NOTE: If a LoadBalancer ingress accesses an existing dedicated load balancer, the dedicated load balancer must be of the application load balancing (HTTP/HTTPS) type.
   kubernetes.io/elb.port	No	String	External port registered with the address of the LoadBalancer ingress. The value ranges from 1 to 65535. The default value is 80 for HTTP and 443 for HTTPS. NOTE: Some ports on a shared load balancer are highly risky and blocked by default, for example, port 21. If you select an existing load balancer, the listener ports of different clusters cannot be reused. Multiple ingresses within the same cluster can share the same listener port, but the listener configuration that works is determined by the earliest ingress configuration.

3. Create an ingress.

   kubectl create -f ingress-test.yaml



   If information similar to the following is displayed, the ingress has been created:

   ingress/ingress-test created



4. Check the created ingress.

   kubectl get ingress



   If information similar to the following is displayed, the ingress has been created:

   NAME          CLASS    HOSTS     ADDRESS          PORTS   AGE
   ingress-test  cce      *         121.**.**.**     80      10s



5. Enter http://121.**.**.**:80 in the address box of the browser to access the workload (for example, Nginx workload).

   121.**.**.** indicates the IP address of the unified load balancer.
