Configuring Remote Backup

Constraints and Limitations

• Only Linux servers support remote backup.
• The server used for remote backup must meet the following requirements:
  • Cloud platform Linux servers
  • The server status is Running.
  • The HSS agent has been installed on the server and its Agent Status is Online.
  Notice

  • The remote backup function can be used when the Linux backup server is connected to the protected cloud server. To ensure proper backup, you are advised to select a backup server on the same intranet as your cloud server.
  • You are advised to use intranet servers least exposed to attacks as the remote backup servers.

Adding a Remote Backup Server

1. Log in to the management console.
2. Click in the upper left corner of the page, select a region, and choose Security > Host Security Service. The HSS page is displayed.
3. Choose Server Protection > Web Tamper Protection. Click Configure Protection in the Operation column.
   Note

   If your servers are managed by enterprise projects, you can select an enterprise project to view or operate the asset and scan information.

4. Click Settings under Protected Directory Settings.
5. Click Manage Remote Backup. In the dialog box that is displayed, click Add Backup Server.

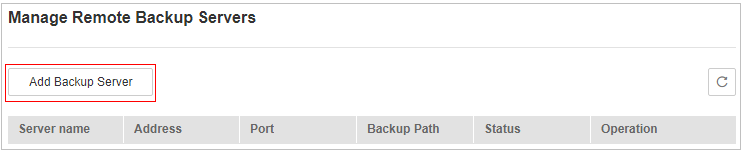

   Figure 1 Adding a Remote Backup Server




   Table 1 Backup server parameters

   Parameter	Description	Example Value
   Address	This address is the private network address of the server.	192.168.0.249
   Port	Ensure that the port is not blocked by any security group or firewall or occupied.	8080
   Backup Path	Path of remote backup files. If the protected directories of multiple servers are backed up to the same remote backup server, the data will be stored in separate folders named after agent IDs. Assume the protected directories of the two servers are /hss01 and hss02, and the agent IDs of the two servers are f1fdbabc-6cdc-43af-acab-e4e6f086625f and f2ddbabc-6cdc-43af-abcd-e4e6f086626f, and the remote backup path is /hss01. The corresponding backup paths are /hss01/f1fdbabc-6cdc-43af-acab-e4e6f086625f and /hss01/f2ddbabc-6cdc-43af-abcd-e4e6f086626f. If WTP is enabled for the remote backup server, do not set the remote backup path to any directories protected by WTP. Otherwise, remote backup will fail.	/hss01

6. Click OK.

Setting remote backup

1. Log in to the management console.
2. Click in the upper left corner of the page, select a region, and choose Security > Host Security Service. The HSS page is displayed.
3. Choose Server Protection > Web Tamper Protection. Click Configure Protection in the Operation column.
   Note

   If your servers are managed by enterprise projects, you can select an enterprise project to view or operate the asset and scan information.

4. Click Settings under Protected Directory Settings.
5. Click Enable Remote Backup and select a remote backup server.
6. Click OK to start remote backup.

Changing a Remote Backup Server

1. Log in to the management console.
2. Click in the upper left corner of the page, select a region, and choose Security > Host Security Service. The HSS page is displayed.
3. Choose Server Protection > Web Tamper Protection. Click Configure Protection in the Operation column.
   Note

   If your servers are managed by enterprise projects, you can select an enterprise project to view or operate the asset and scan information.

4. Click Settings under Protected Directory Settings.
5. Click Manage Remote Backup Servers. The Manage Remote Backup Servers page is displayed. Click Edit in the Operation column to modify the information about the remote backup server.
6. Click OK.
