IP Address Group Overview
What Is an IP Address Group?
An IP address group is a collection of IP addresses. It can be associated with security groups and network ACLs to simplify IP address configuration and management.
You can add IP address ranges and IP addresses that need to be managed in a unified manner to an IP address group. An IP address group can work together with different cloud resources. Table 1 lists the resources that can be associated with an IP address group.
Resource | Description | Example |
|---|---|---|
Security group | The Source or Destination of a security group rule can be set to IP address group. | As shown in Figure 1, the inbound rule of security group sg-A uses IP address group ipGroup-A as the source. |
Network ACL | The Source or Destination of a network ACL is set to IP address group. | As shown in Figure 1, the inbound rule of network ACLfw-A uses IP address group ipGroup-A as the source. |

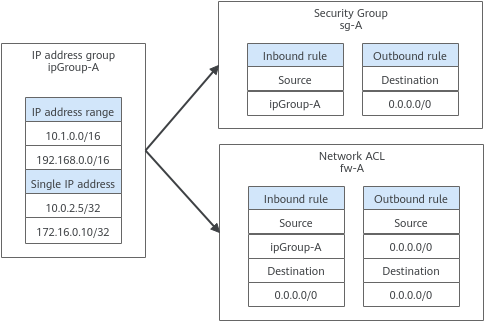

Figure 1 Using IP address group
Constraints
- If a network ACL rule uses an IP address group:
- Either the source or the destination of an inbound rule can use the IP address group.
- Either the source or the destination of an outbound rule can use the IP address group.
For example, if the source of an inbound rule network ACL is set to an IP address group, the rule destination can only be an IP address.
