VPC and Subnet Planning

How Do I Determine How Many VPCs I Need?

Planning a Single VPC

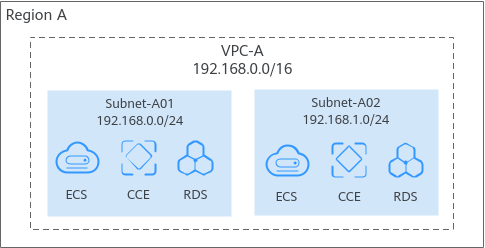

Figure 1 Planning a single VPC

Planning Multiple VPCs

• Services that need to be deployed in different regions

  VPC is a region-specific service, so services cannot be deployed across regions in a VPC. If your services are deployed in multiple regions, plan at least one VPC in each region.

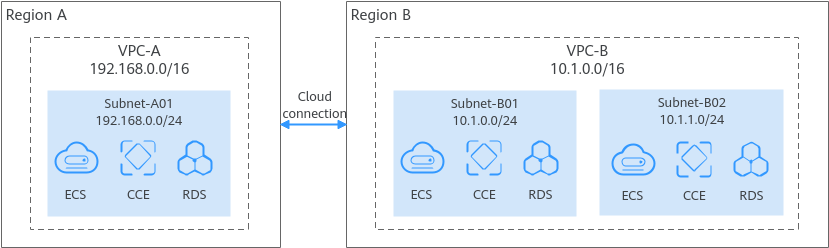

  Figure 2 Planning multiple VPCs




• Services that are deployed in the same region but need network isolation.

  If your services are deployed in the same region but need network isolation, you need to plan multiple VPCs in this region. Different VPCs are isolated from each other, so you can deploy different services in different VPCs, as shown in Figure 3. In the figure, some services are deployed in VPC-A, and some are deployed in VPC-B. The two VPCs are isolated from each other.

  Figure 3 Planning multiple VPCs




How Do I Determine How Many Subnets I Need?

Note the following when selecting subnets and AZs for your resources:

• All instances in different subnets of the same VPC can communicate with each other by default, and the subnets can be located in different AZs. If you have a VPC with two subnets in it and they are located in different AZs, they can communicate with each other by default.
• A cloud resource can be in a different AZ from its subnet. For example, a cloud server in AZ 1 can be in a subnet in AZ 3. If AZ 3 becomes faulty, cloud servers in AZ 1 can still use the subnet in AZ 3, and your services are not interrupted.

How Do I Plan CIDR Blocks for VPCs and Subnets?

Planning VPC CIDR Blocks

When creating a VPC, you need to specify an IPv4 CIDR block for it. Consider the following when selecting a CIDR block:

• Reserve enough IP addresses for subsequent service expansion.
• Avoid CIDR block conflicts. To enable communications between VPCs or between a VPC and an on-premises data center, ensure their CIDR blocks do not overlap.

Table 1 lists the supported VPC CIDR blocks.

Planning Subnet CIDR Blocks

• Subnet mask planning: A subnet CIDR block must be within its VPC CIDR block. Each subnet CIDR block in a VPC must be unique. A subnet mask can be between the netmask of its VPC CIDR block and the /29 netmask. If a VPC CIDR block is 10.0.0.0/16, its subnet mask can be anything from 16 to 29.

  For example, if the CIDR block of a VPC is 10.0.0.0/16, you can specify 10.0.0.0/24 for a subnet in this VPC, 10.0.1.0/24 for the second subnet, and 10.0.2.0/24 for the third subnet.

• Planning the CIDR block size: After a subnet is created, the CIDR block cannot be changed. You need to plan the CIDR block in advance based on the number of IP addresses required by your service.
  • The subnet CIDR block cannot be too small. Ensure that the number of available IP addresses in the subnet meets service requirements. Remember that the first and last three addresses in a subnet CIDR block are reserved for system use. For example, in subnet 10.0.0.0/24, 10.0.0.1 is the gateway address, 10.0.0.253 is the system interface address, 10.0.0.254 is used by DHCP, and 10.0.0.255 is the broadcast address.
  • The subnet CIDR block cannot be too large, either. If you use a CIDR block that is too large, you may not have enough CIDR blocks available later for new subnets, which can be a problem when you want to scale out services.
• Avoiding subnet CIDR block conflicts: If you need to connect two VPCs or connect a VPC to an on-premises data center, there cannot be any CIDR block conflicts.

How Do I Know How Many Route Tables I Need?

Planning One Route Table

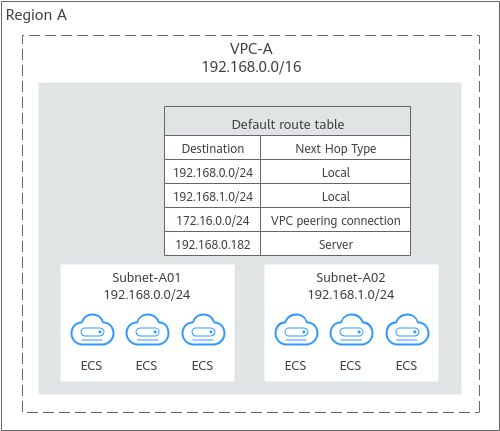

If you have the same or similar requirements for controlling the network traffic to and from subnets in a VPC, you can create one route table and associate it with these subnets in this VPC. Each VPC comes with a default route table. If you create a subnet in the VPC, the subnet is associated with the default route table. You can add routes to the default route table to control where the traffic is directed. In Figure 4, VPC-A has only the default route table, and subnets Subnet-A01 and Subnet-A02 are associated with the default route table.

Figure 4 Planning one route table

Planning Multiple Route Tables

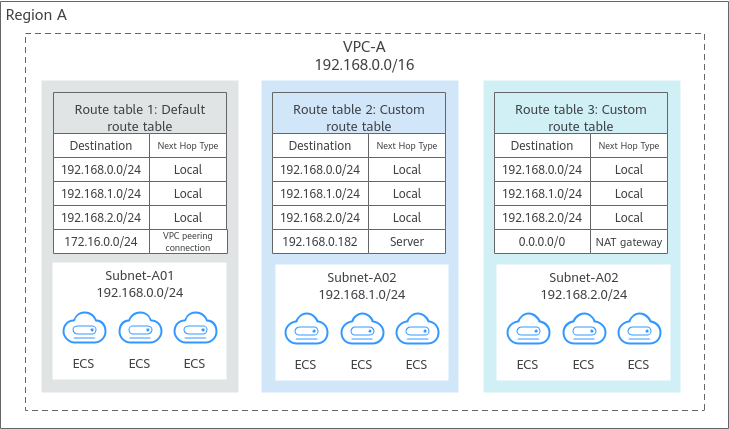

If you have different requirements for controlling the network traffic to and from subnets in a VPC, the default route table is not enough. You can create one or more custom route tables and associate them with these subnets in this VPC. In Figure 5, VPC-A has three route tables. Subnet-A01 is associated with default route table 1, Subnet-A02 is associated with custom route table 2, and Subnet-A03 is associated with custom route table 3.

Figure 5 Planning multiple route tables

How Do I Connect Two VPC or Connect a VPC to an On-premises Data Center?

Connecting Two VPCs

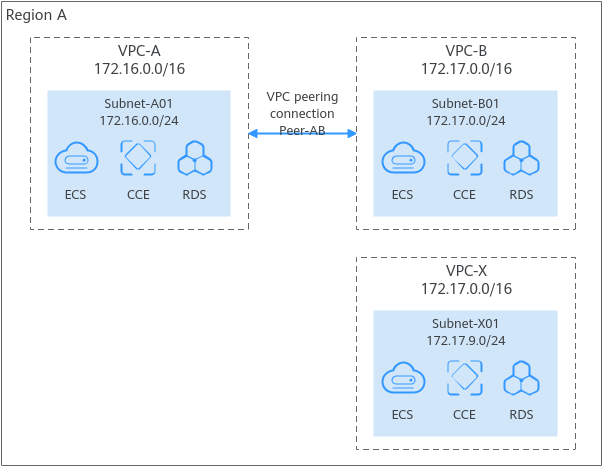

Connecting VPCs in the same region: In Figure 6, there are three VPCs (VPC-A, VPC-B, and VPC-X) in region A. If you want to connect VPC-A and VPC-B, but isolate VPC-C from other VPCs:

• Ensure that the CIDR blocks of VPC-A and VPC-B connected by a peering connection (Peering-AB in this example) must be unique.
• You do not need to worry about VPC CIDR block conflicts because VPC-X does not need to communicate with other VPCs. If VPC-X and VPC-B need to communicate with each other, you can specify different CIDR blocks for the subnets in the two VPCs and create a VPC peering connection to connect the subnets.

Figure 6 Connecting VPCs in the same region

Connecting a VPC to an On-premises Data Center

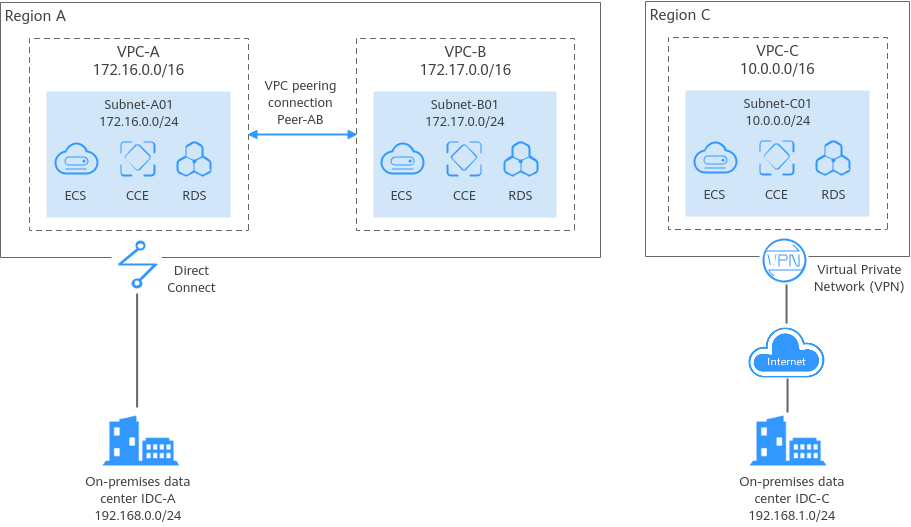

In Figure 7, VPC-A and VPC-B in region A need to communicate with each other, and VPC-A needs to connect to on-premises data center IDC-A. In region C, VPC-C needs to connect to on-premises data center IDC-C.

• In region A, VPC-A and VPC-B have different CIDR blocks and can communicate with each other through a VPC peering connection. VPC-A and IDC-A have different CIDR blocks and are connected through a direct connection.
• In region C, VPC-C and IDC-C have different CIDR blocks and are connected through a VPC connection.

Figure 7 Connecting a VPC to an on-premises data center
