Connecting to a DB Instance Through a Private Network

Process

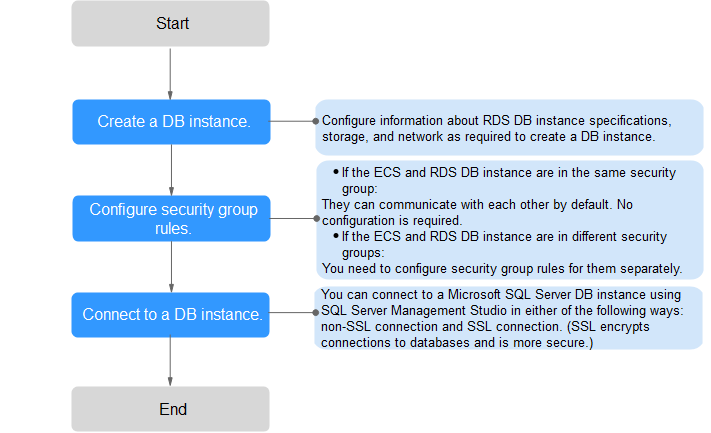

Figure 1 Connecting to a DB instance through a private network

• Step 1: Create a DB instance. Confirm the specifications, storage, network, and database account configurations of the RDS for SQL Server DB instances based on service requirements.
• Step 2: Configure security group rules.
  • If the ECS and RDS DB instance are in the same security group, they can communicate with each other by default. No security group rule needs to be configured. Go to Connecting to a DB Instance from a Windows ECS.
  • If the ECS and RDS DB instance are in different security groups, you need to configure security group rules for them, separately.
    • RDS DB instance: Configure an inbound rule for the security group with which the RDS DB instance is associated.
    • ECS: The default security group rule allows all outgoing data packets. In this case, you do not need to configure a security rule for the ECS. If not all outbound traffic is allowed in the security group, you need to configure an outbound rule for the ECS.
• Step 3: Connect to a DB instance through a private network. You can connect to a DB instance through a non-SSL connection or an SSL connection. The SSL connection encrypts data and is more secure.
