What Do I Do If the Disks of a CentOS ECS Created from an Image Cannot Be Found?

Symptom

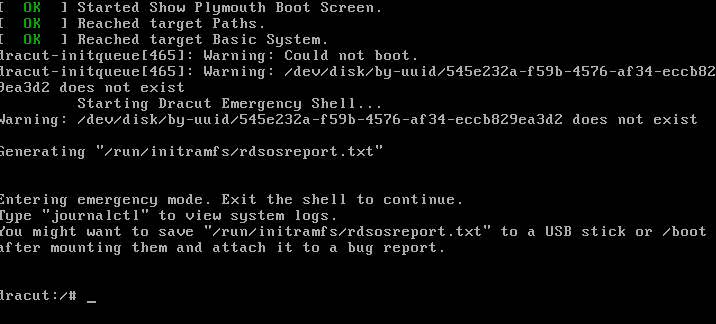

Figure 1 Startup screen

Solution

1. Run the following command to log in to the OS:

   lsinitrd /boot/initramfs-`uname -r`.img |grep -i xen

   • If the command output contains xen-blkfront.ko, contact the customer service.
   • If no command output is displayed, go to 2.

2. Back up the GRUB file.
   • If the ECS runs CentOS 6, run the following command:

     cp /boot/grub/grub.conf /boot/grub/grub.conf.bak

   • If the ECS runs CentOS 7, run the following command:

     cp /boot/grub2/grub.cfg /boot/grub2/grub.cfg.bak

3. Use the vi editor to open the GRUB file (CentOS 7 as an example).

   vi /boot/grub2/grub.cfg

4. Add xen_emul_unplug=all to the default boot kernel.
   Note

   Search for the line that contains root=UUID= and add xen_emul_unplug=all to the end of the line.

   menuentry 'CentOS Linux (3.10.0-229.el7.x86_64) 7 (Core) with debugging' --class centos --class gnu-linux --class gnu --class os --unrestricted $menuentry_id_option 'gnulinux-3.10.0-229.el7.x86_64-advanced-bf3cc825-7638-48d8-8222-cd2f412dd0de' {
           load_video
           set gfxpayload=keep
           insmod gzio
           insmod part_msdos
           insmod ext2
           set root='hd0,msdos1'
           if [ x$feature_platform_search_hint = xy ]; then
             search --no-floppy --fs-uuid --set=root --hint='hd0,msdos1'  bf3cc825-7638-48d8-8222-cd2f412dd0de
           else
             search --no-floppy --fs-uuid --set=root bf3cc825-7638-48d8-8222-cd2f412dd0de
           fi
           linux16 /boot/vmlinuz-3.10.0-229.el7.x86_64 root=UUID=bf3cc825-7638-48d8-8222-cd2f412dd0de xen_emul_unplug=all ro crashkernel=auto rhgb quiet  systemd.log_level=debug systemd.log_target=kmsg
           initrd16 /boot/initramfs-3.10.0-229.el7.x86_64.img
   }



5. Press Esc, enter :wq, and press Enter to exit the vi editor.
6. Create an image using the ECS, upload and register the image on the cloud, and then use the image to create a new ECS.
