How Does a Function Access the MySQL Database?

Perform the following operations:

1. Check whether the MySQL database is deployed in a VPC.
   • Yes: Configure the same VPC and subnet as the MySQL database for the function by referring to Configuring VPC Access.
   • No: See How Do I Configure External Network Access?
2. Search for MySQL templates and select the one with the desired runtime, as shown in Figure 1. Set the parameters as required and click Create Function.

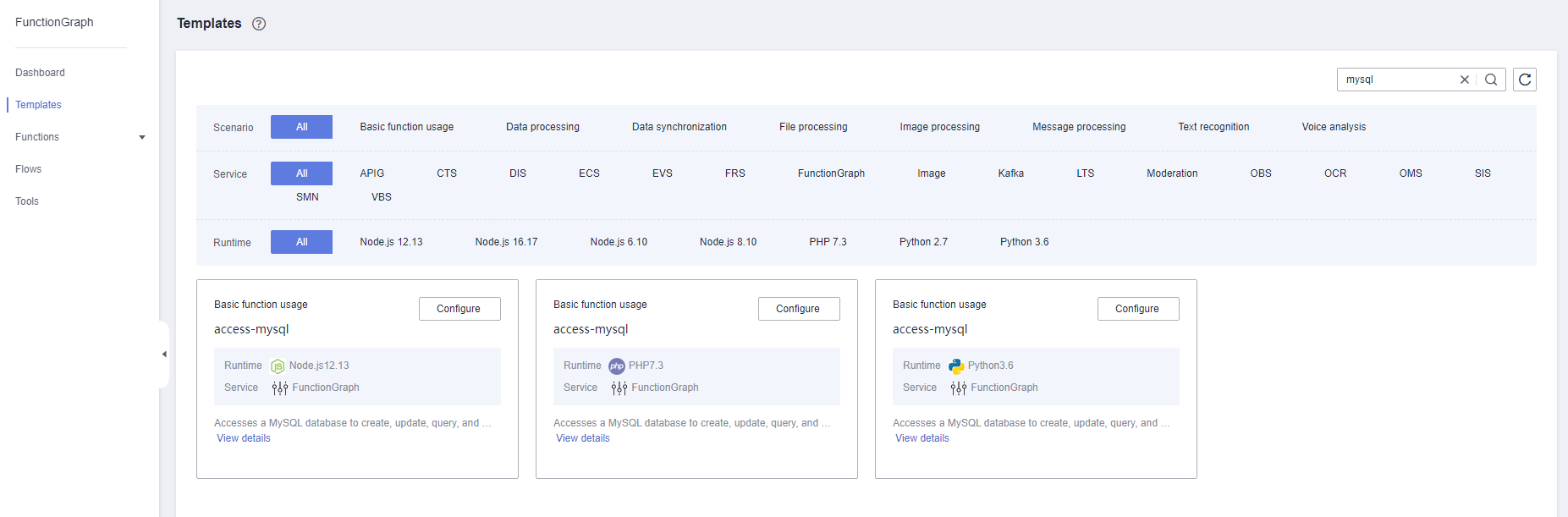

   Figure 1 Selecting a function template



3. After the MySQL function is created, choose Configuration > Environment Variables, click Edit Environment Variable. In the displayed dialog box, add environment variables and enable encryption as required (see Figure 2), and click OK.

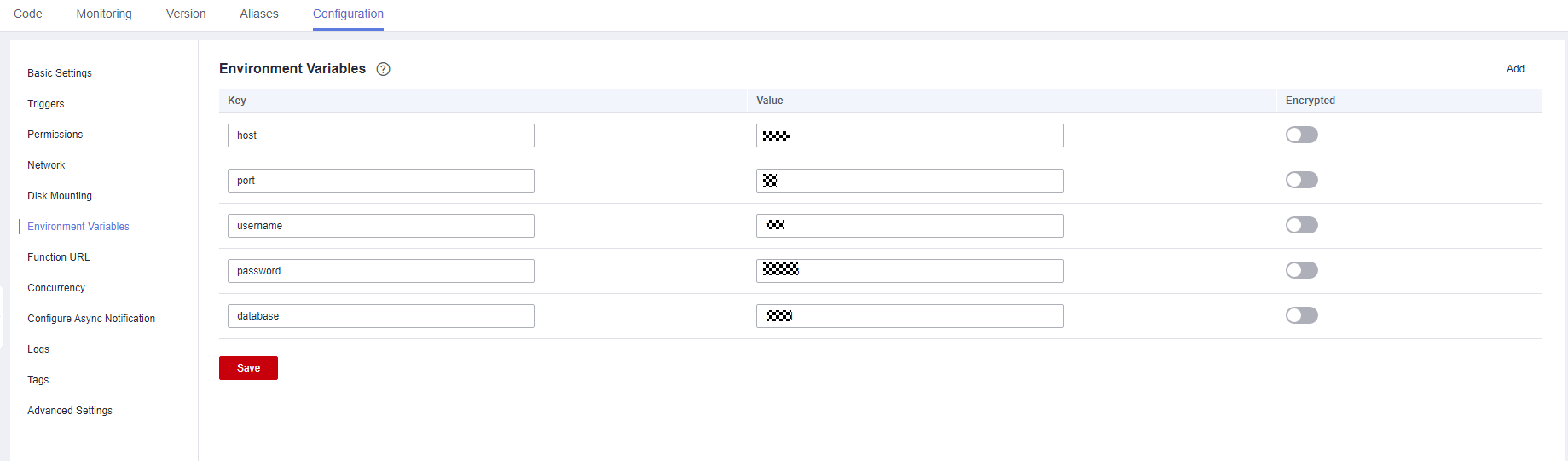

   Figure 2 Enabling encryption



   Note

   If the function needs to access RDS APIs, create an agency and grant required permissions.
