Creating a Custom DLI Agency

DLI Custom Agency Scenarios

Procedure

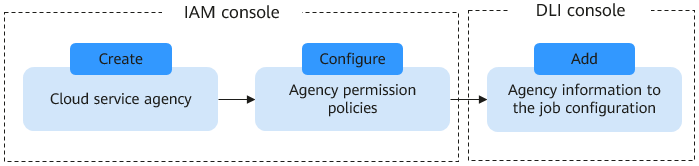

Figure 1 Process of creating a custom agency

Notes and Constraints

• The custom agency name cannot be the default agency names dli_admin_agency, dli_management_agency, or dli_data_clean_agency. It must be unique.
• The name of the agency that allows DLI to clear data according to the lifecycle of a table must be dli_data_clean_agency.
• Custom agencies can be configured only for jobs executed by engines like Flink 1.15, Spark 3.3.1 (Spark general queue scenario), or later versions.
• Once the agency permissions are updated, your dli_admin_agency will be upgraded to dli_management_agency. This new agency will have the necessary permissions for datasource operations, notifications, and user authorization operations. If you have other agency permission needs, you will need to create custom agencies. For details about dli_management_agency, see DLI Agency Overview.
• Common scenarios for creating an agency: DLI is allowed to read and write data from and to OBS, dump logs, and read and write Flink checkpoints. DLI is allowed to access DEW to obtain data access credentials and access catalogs to obtain metadata. For details about agency permissions in these scenarios, see Agency Permission Policies in Common Scenarios.

Step 1: Create a Cloud Service Agency on the IAM Console and Grant Permissions

1. Log in to the management console.
2. In the upper right corner of the page, hover over the username and select Identity and Access Management.
3. In the navigation pane of the IAM console, choose Agencies.
4. On the displayed page, click Create Agency.
5. On the Create Agency page, set the following parameters:
   • Agency Name: Enter an agency name, for example, dli_obs_agency_access.
   • Agency Type: Select Cloud service.
   • Cloud Service: This parameter is available only when you select Cloud service for Agency Type. Select Data Lake Insight (DLI) from the drop-down list.
   • Validity Period: Select Unlimited.
   • Description: You can enter Agency with OBS OperateAccess permissions. This parameter is optional.
6. Click Next.
7. Click the agency name. On the displayed page, click the Permissions tab. Click Authorize. On the displayed page, click Create Policy.
8. Configure policy information.
   1. Enter a policy name, for example, dli-obs-agency.
   2. Select JSON.
   3. In the Policy Content area, paste a custom policy.

      In this example, the permissions allow access and usage of OBS in various scenarios. For DLI Flink jobs, this includes downloading OBS objects, obtaining OBS/GaussDB(DWS) data sources (foreign tables), transferring logs, using savepoints, and enabling checkpointing. For DLI Spark jobs, the permissions allow downloading OBS objects and reading/writing OBS foreign tables.

      For how to configure common agency permissions for Flink jobs, see Agency Permission Policies in Common Scenarios.

      {
          "Version": "1.1",
          "Statement": [
              {
                  "Effect": "Allow",
                  "Action": [
                      "obs:bucket:GetBucketPolicy",
                      "obs:bucket:GetLifecycleConfiguration",
                      "obs:bucket:GetBucketLocation",
                      "obs:bucket:ListBucketMultipartUploads",
                      "obs:bucket:GetBucketLogging",
                      "obs:object:GetObjectVersion",
                      "obs:bucket:GetBucketStorage",
                      "obs:bucket:GetBucketVersioning",
                      "obs:object:GetObject",
                      "obs:object:GetObjectVersionAcl",
                      "obs:object:DeleteObject",
                      "obs:object:ListMultipartUploadParts",
                      "obs:bucket:HeadBucket",
                      "obs:bucket:GetBucketAcl",
                      "obs:bucket:GetBucketStoragePolicy",
                      "obs:object:AbortMultipartUpload",
                      "obs:object:DeleteObjectVersion",
                      "obs:object:GetObjectAcl",
                      "obs:bucket:ListBucketVersions",
                      "obs:bucket:ListBucket",
                      "obs:object:PutObject"
                  ],
                  "Resource": [
                      "OBS:*:*:bucket:bucketName",// Replace bucketName with the actual bucket name.
                      "OBS:*:*:object:*"
                  ]
              },
              {
                  "Effect": "Allow",
                  "Action": [
                      "obs:bucket:ListAllMyBuckets"
                  ]
              }
          ]
      }



   4. Enter a policy description as required.
9. Click Next.
10. On the Select Policy/Role page, select Custom policy from the first drop-down list and select the custom policy created in 8.
11. Click Next. On the Select Scope page, set the authorization scope.

    In this example, the custom policy is an OBS agency. So, select Global services. If a DLI agency is used, you are advised to select Region-specific projects.

12. Click OK.

    It takes 15 to 30 minutes for the authorization to be in effect.

Step 2: Set Agency Permissions for a Job

• Specifying an agency for a Flink Jar job
  1. Log in to the DLI console. In the navigation pane, choose Job Management > Flink Jobs.
  2. Select a desired job and click Edit in the Operation column.
  3. In the job configuration area on the right, configure agency information.
     • Flink Version: Select 1.15.
     • Agency: Select the agency created in Step 1: Create a Cloud Service Agency on the IAM Console and Grant Permissions.

       In this example, set it to dli_obs_agency_access.

• Specifying an agency for a Flink OpenSource SQL job
  1. Log in to the DLI console. In the navigation pane, choose Job Management > Flink Jobs.
  2. Select a desired job and click Edit in the Operation column.
  3. In the job configuration area on the right, configure agency information.
     • On the Running Parameters tab, ensure that the selected Flink version is 1.15.
     • Agency: Select the agency created in Step 1: Create a Cloud Service Agency on the IAM Console and Grant Permissions.

       In this example, set it to dli_obs_agency_access.

• Specifying an agency for a Spark job
  1. Log in to the DLI console. In the navigation pane, choose Job Management > Spark Jobs.
  2. Select the target job and click Edit in the Operation column.
  3. In the job configuration area on the right, configure agency information.
     • Spark Version: Make sure to select 3.3.1.
     • Agency: Select the agency created in Step 1: Create a Cloud Service Agency on the IAM Console and Grant Permissions.

       In this example, set it to dli_obs_agency_access.
