Querying Real-Time Traces

Scenarios

Constraints

• You can only query operation records of the last seven days on the CTS console. To store operation records for longer than seven days, you must configure transfer to OBS or Log Tank Service (LTS) so that you can view them in OBS buckets or LTS log groups.
• After performing operations on the cloud, you can query management traces on the CTS console one minute later and query data traces five minutes later.
• Data traces are not displayed in the trace list of the new version. To view them, you need to go to the old version.
• These operation records are retained for seven days on the CTS console and are automatically deleted upon expiration. Manual deletion is not supported.

Viewing Real-Time Traces in the Trace List of the New Edition

1. Log in to the management console.
2. Click in the upper left corner and choose Management & Deployment > Cloud Trace Service. The CTS console is displayed.
3. Choose Trace List in the navigation pane on the left.
4. On the Trace List page, use advanced search to query traces. You can combine one or more filters.
   • Trace Name: Enter a trace name.
   • Trace ID: Enter a trace ID.
   • Resource Name: Enter a resource name. If the cloud resource involved in the trace does not have a resource name or the corresponding API operation does not involve the resource name parameter, leave this field empty.
   • Resource ID: Enter a resource ID. Leave this field empty if the resource has no resource ID or if resource creation failed.
   • Trace Source: Select a cloud service name from the drop-down list.
   • Resource Type: Select a resource type from the drop-down list.
   • Operator: Select one or more operators from the drop-down list.
   • Trace Status: Select normal, warning, or incident.
     • normal: The operation succeeded.
     • warning: The operation failed.
     • incident: The operation caused a fault that is more serious than the operation failure, for example, causing other faults.
   • Time range: Select Last 1 hour, Last 1 day, or Last 1 week, or specify a custom time range within the last seven days.
5. On the Trace List page, you can also export and refresh the trace list, and customize columns to display.
   • Enter any keyword in the search box and press Enter to filter desired traces.
   • Click Export to export all traces in the query result as an .xlsx file. The file can contain up to 5,000 records.
   • Click to view the latest information about traces.
   • Click to customize the information to be displayed in the trace list. If Auto wrapping is enabled (), excess text will move down to the next line; otherwise, the text will be truncated. By default, this function is disabled.
6. For details about key fields in the trace structure, see section "Trace References" > "Trace Structure" and section "Trace References" > "Example Traces".
7. (Optional) On the Trace List page of the new edition, click Go to Old Edition in the upper right corner to switch to the Trace List page of the old edition.

Viewing Real-Time Traces in the Trace List of the Old Edition

1. Log in to the management console.
2. Click in the upper left corner and choose Management & Deployment > Cloud Trace Service. The CTS console is displayed.
3. Choose Trace List in the navigation pane on the left.
4. Each time you log in to the CTS console, the new edition is displayed by default. Click Go to Old Edition in the upper right corner to switch to the trace list of the old edition.
5. Set filters to search for your desired traces. The following filters are available.
   • Trace Type, Trace Source, Resource Type, and Search By: Select a filter from the drop-down list.
     • If you select Resource ID for Search By, specify a resource ID.
     • If you select Trace name for Search By, specify a trace name.
     • If you select Resource name for Search By, specify a resource name.
   • Operator: Select a user.
   • Trace Status: Select All trace statuses, Normal, Warning, or Incident.
   • Time range: Select Last 1 hour, Last 1 day, or Last 1 week, or specify a custom time range within the last seven days.

6. Click Query.
7. On the Trace List page, you can also export and refresh the trace list.
   • Click Export to export all traces in the query result as a CSV file. The file can contain up to 5,000 records.
   • Click to view the latest information about traces.
8. Click on the left of a trace to expand its details.

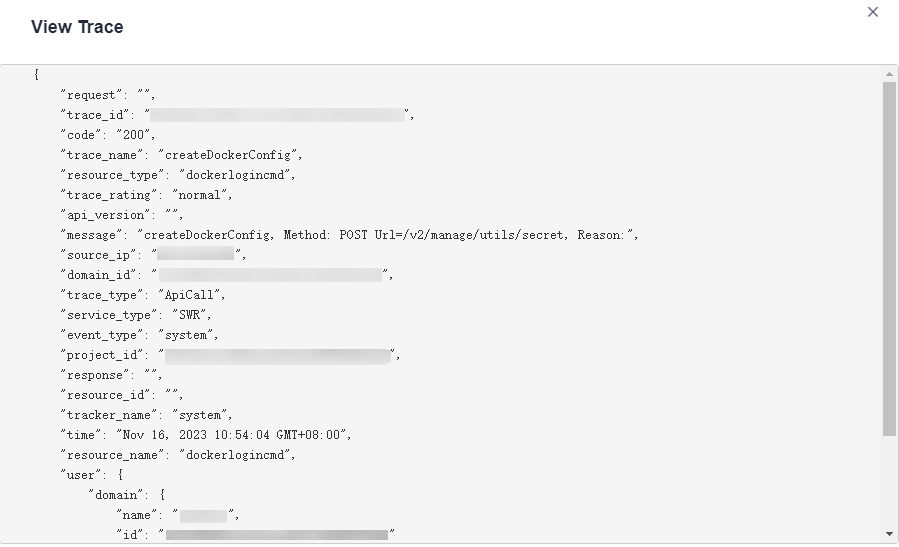

9. Click View Trace in the Operation column. The trace details are displayed.



10. For details about key fields in the trace structure, see section "Trace References" > "Trace Structure" and section "Trace References" > "Example Traces" in the CTS User Guide.
11. (Optional) On the Trace List page of the old edition, click New Edition in the upper right corner to switch to the Trace List page of the new edition.
