Viewing ClickHouse Cluster Monitoring Information

Scenario

Monitoring Function

Viewing ClickHouse Cluster Monitoring Information on the Cloud Eye Console

1. Log in to the CloudTable console.
2. Select a region in the upper left corner.
3. In the cluster list on the Cluster Management page, locate the row where the target cluster resides, click View Metric in the Operation column. The Cloud Eye console is displayed.

   The status of the cluster to be viewed must be In service.

4. On the Cloud Service Monitoring page, click on the left of the cluster ID to expand the compute unit list, and select the corresponding node to view the monitoring information.
5. Set the metrics to be viewed if there are too many metrics on the monitoring page.
   1. If there are too many metrics, delete them on the Select Metric page.
   2. If the metrics displayed on the page do not contain the desired metrics, add the metrics on the Select Metric page.
   3. Select at least one metric. You can drag a selected metric and drop it to a desired location to sort the metrics.
      Note

      • If you want to view monitoring data in real time, enable automatic refresh. The platform can automatically refresh monitoring graphs at intervals of 1 hour, 3 hours, 12 hours, 24 hours, and 7 days.
      • If you want to zoom in on a single metric view, click in the upper right corner of the metric view to view its details.

Viewing ClickHouse Cluster Monitoring Information on the Cluster Details Page

1. Log in to the CloudTable console.
2. Go to the Cluster Management page, select the target ClickHouse cluster, and click the cluster name to go to the cluster details page.
3. View the monitoring metrics on the cluster details page.

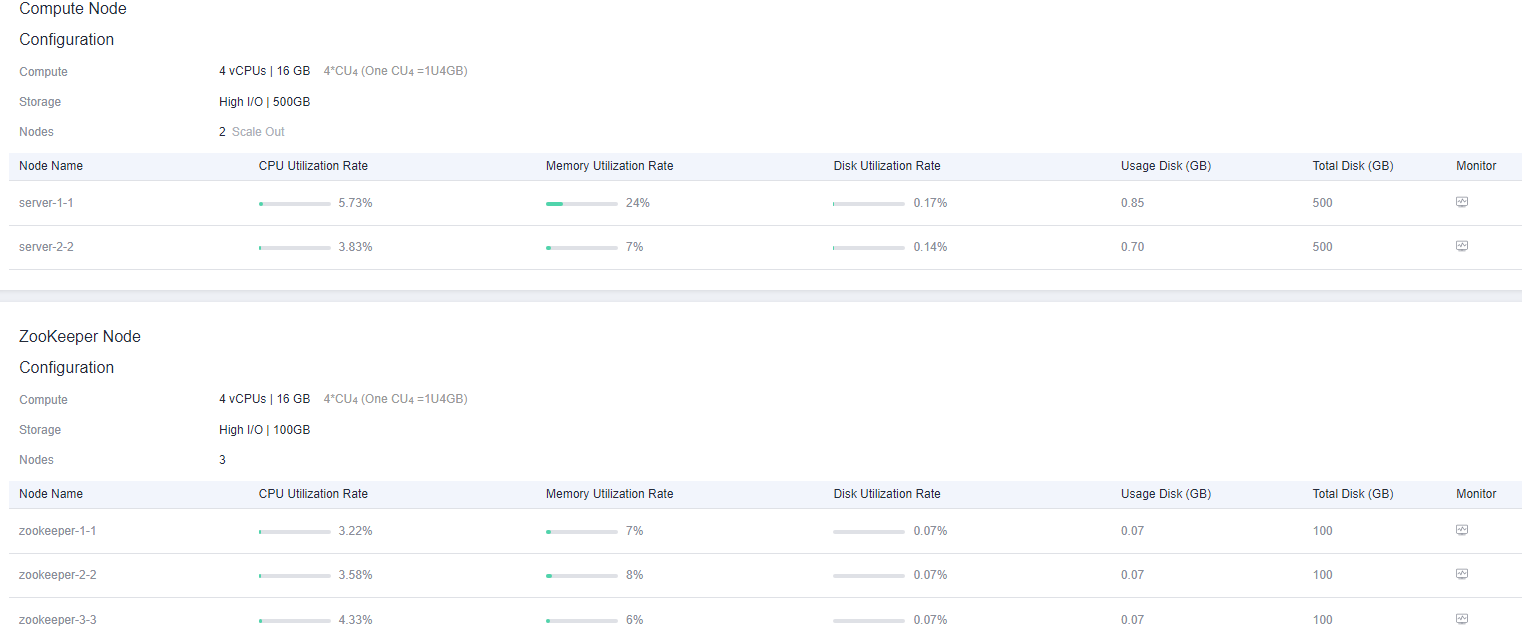

   Figure 1 ClickHouse monitoring page




4. To view all node metrics, navigate to the Cloud Eye monitoring page from the details page by clicking the monitoring icon . This page provides detailed monitoring metrics for individual ClickHouse cluster nodes.
