How Do I Troubleshoot a Pod Exit Caused by a Node Label Update?

Symptom

Possible Cause

Solution

• When you only need to add a new Kubernetes label to a node or node pool, avoid removing any existing Kubernetes labels from it. This ensures that the affinity policies remain unchanged so that the existing pods can continue running on the node.
• If you need to change or delete a Kubernetes label on a node or node pool, but the new label does not align with the affinity policies of the pods running on the node, take the following steps to verify if there are pods with affinity scheduling configured on the node: (If no check is done, there may be a problem with pod scheduling when kubelet restarts.)
  1. Check whether an affinity policy has been configured for the workloads on a node.
     • If the node is in the default node pool (DefaultPool), run the following command and replace <node-IP-address> with the actual one:

       nodeIP='<node-IP-address>' && kubectl get pod --all-namespaces -o=custom-columns=nodeIP:'status.hostIP',nodeAffinity:'spec.affinity.nodeAffinity.requiredDuringSchedulingIgnoredDuringExecution.nodeSelectorTerms' | sed '1d' | grep $nodeIP | awk '{print substr($0, index($0,$2))}' | grep matchExpressions | uniq



       • If the command output is empty, it indicates that there is no affinity policy configured for any workload on the node, so the workload pods will not be rescheduled because of a new node label.
       • If the command output is not empty, it means there is an affinity policy configured for some workloads on the node. The following shows an example, and it indicates that there is a tag1=value1 label configured for some workloads.



     • If the node is in a custom node pool, run the following command and replace <node-pool-name> with the actual one:

       nodeIPs=$(kubectl get nodes -l cce.cloud.com/cce-nodepool=<node-pool-name> -o=custom-columns=IP:'metadata.annotations.alpha\.kubernetes\.io\/provided-node-ip' | sed '1d' | tr '\n' '|' | sed 's/|$//') && kubectl get pod --all-namespaces -o=custom-columns=nodeIP:'status.hostIP',nodeAffinity:'spec.affinity.nodeAffinity.requiredDuringSchedulingIgnoredDuringExecution.nodeSelectorTerms' | sed '1d' | grep -E $nodeIPs | awk '{print substr($0, index($0,$2))}' | grep matchExpressions | uniq



       • If the command output is empty, it indicates that there is no affinity policy configured for any workload in the node pool, so the workload pods will not be rescheduled because of a new node label.

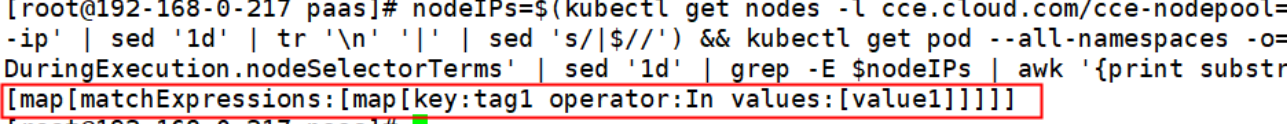

       • If the command output is not empty, it means there is an affinity policy configured for some workloads in the node pool. The following shows an example, and it indicates that there is a tag1=value1 label configured for some workloads.



  2. Get all workloads that are associated with the affinity policy. The value of affinity-policy is the one obtained in the previous step.

     match='affinity-policy' && kubectl get deployment,statefulset,daemonset,job,cronjob --all-namespaces -o=custom-columns=kind:'kind',name:'metadata.namespace',namespace:'metadata.name',nodeAffinity:'spec.template.spec.affinity.nodeAffinity.requiredDuringSchedulingIgnoredDuringExecution.nodeSelectorTerms' | grep -F "$match" | awk '{print "kind:" $1 ",namespace:" $2 ",name:" $3}'

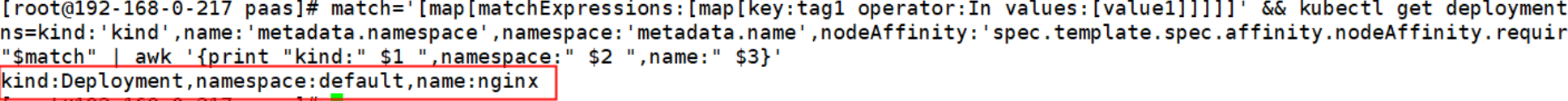

     As shown in the following figure, the workloads with the tag1=value1 label are displayed.



  3. Evaluate the impact of the workload restart on services before changing any label on the node or node pool.

     You can also modify the affinity policy of a workload to schedule it to other nodes and change the node label after the workload pod runs properly.
