Using the AccessPolicy API to Manage Namespace Permissions (Kubernetes RBAC-based)

Prerequisites

• Before assigning permissions to users or user groups, you need to review the information provided in Namespace Permissions (Kubernetes RBAC-based).
• To use an access policy, an IAM user or user group must have the specific permissions. These include CreateAccessPolicy, UpdateAccessPolicy, DeleteAccessPolicy, ListAccessPolicy, and GetAccessPolicy. Learn about the CCE system policies that can be added to a user group and select appropriate ones as needed. For details about how to assign permissions to a user group, see Granting Cluster Permissions to an IAM User.

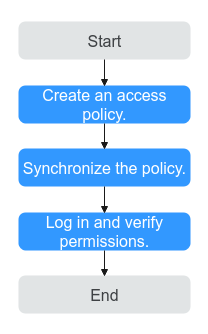

Configuring Namespace Permissions Through APIs

1. Call the API to create an access policy.

   POST /api/v3/access-policies

   Request body:

   {
       "kind": "AccessPolicy",
       "apiVersion": "v3",
       "name": "policy-test",
       "clusters": [ "*" ],
       "accessScope": {
           "namespaces": [ "ns1", "ns2" ]
       },
       "policyType": "CCEAdminPolicy/CCEClusterAdminPolicy/CCEEditPolicy/CCEViewPolicy",
       "principal": {
           "type": "user/group/agency",
           "ids": ["id1", "id2" ]
       }
   }



   Parameter	Item	Description
   name	Name	Name of the access policy.
   clusters	Cluster list	IDs of the clusters to which access policies are to be added. Wildcard characters (*) are supported.
   namespaces	Namespaces	Namespaces to which access policies are to be added. Wildcard characters (*) are supported.
   policyType	Permission type	Permission type. Options: CCEClusterAdminPolicy: administrator permission CCEAdminPolicy: O&M permission CCEEditPolicy: developer permission CCEViewPolicy: read-only permission
   principalType	User or user group type	Type of a user or user group. Options: user: user group: user group agency: agency account
   principalId	User or user group list	IDs of the users or user groups to be authorized.

2. The CCE management plane automatically synchronizes the access policies to the associated cluster. Run the kubectl command. Then, RoleBinding or ClusterRoleBinding will be created in the cluster.
   Note

   The synchronization will take several minutes to take effect.

   1. Check RoleBinding in the cluster.

      kubectl get rolebinding



      In the following command output, clusterrole_access_policy_069fcc2116c347b89869eae3cd38ba23 is the automatically created RoleBinding:

      NAME                                                         ROLE                AGE
      clusterrole_access_policy_069fcc2116c347b89869eae3cd38ba23   ClusterRole/admin   18s



   2. Check RoleBinding details.

      kubectl get rolebinding clusterrole_access_policy_069fcc2116c347b89869eae3cd38ba23 -oyaml



      Command output:

      apiVersion: rbac.authorization.k8s.io/v1
      kind: RoleBinding
      metadata:
        annotations:
      CCE.com/IAM: "true"
        label:
      rbac.kubernetes.io/GeneratedByAccessPolicy: "true"
        creationTimestamp: "2021-06-24T01:30:08Z"
        name: clusterrole_admin_group0c96fad22880f32a3f84c009862af6f7
        resourceVersion: "36963685"
        selfLink: /apis/rbac.authorization.k8s.io/v1/namespaces/default/rolebindings/clusterrole_admin_group0c96fad22880f32a3f84c009862af6f7
        uid: 6c6f46a6-8584-47da-83f5-9eef1f7b75d6
      roleRef:
        apiGroup: rbac.authorization.k8s.io
        kind: ClusterRole
        name: admin
      subjects:
      - apiGroup: rbac.authorization.k8s.io
        kind: Group
        name: 0c96fad22880f32a3f84c009862af6f7



3. Log in to the CCE console as the newly authorized IAM user for verification.

   In the service list, choose Cloud Container Engine. On the CCE console, access the cluster and choose the target namespace. If only the default namespace is authorized and the kube-system namespace is unavailable, the access policy has taken effect.
