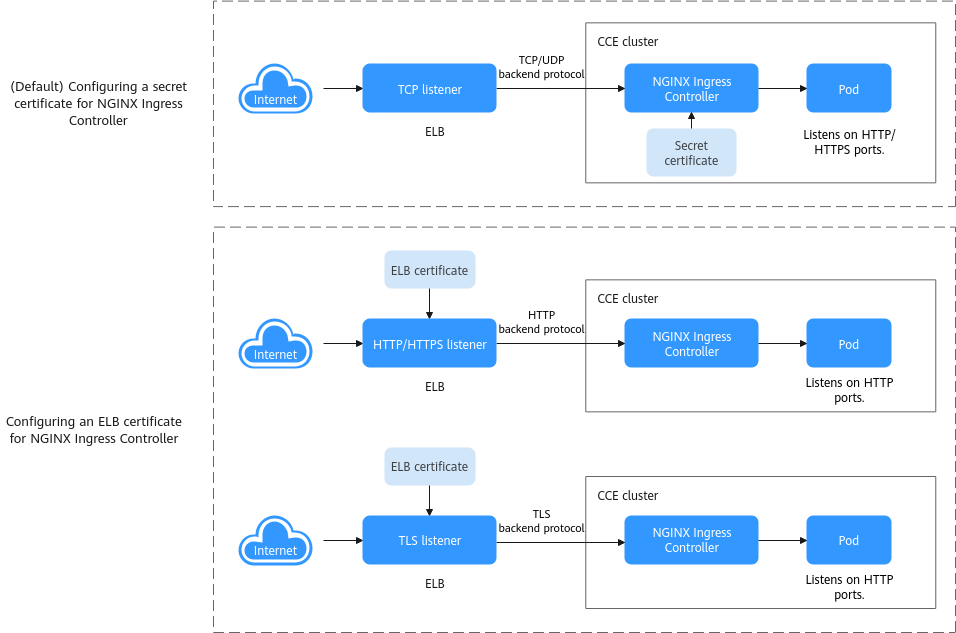

Configuring an ELB Certificate for NGINX Ingress Controller

Prerequisites

• The version of the NGINX Ingress Controller add-on installed in the cluster must be 2.2.104, 2.6.53, 3.0.30, or later.
• Before enabling the NGINX Ingress Controller add-on, it is necessary to ensure that the associated dedicated load balancer meets the required protocols. For example, an application load balancer supports only HTTP and HTTPS. If TCP is required, the load balancer must support both application and network load balancing.
• With an ELB certificate configured, the default server certificate (default-ssl-certificate) of the NGINX Ingress Controller add-on cannot be used. All external requests must carry the ELB certificate to access services within the cluster.

Procedure

1. Log in to the CCE console and click the cluster name to access the cluster console. In the navigation pane, choose Add-ons, locate NGINX Ingress Controller on the right, and click Install.

   If the add-on has been installed, click Manage, select the pod for which you want to configure an ELB certificate, and click Edit.

2. In the Extended Parameter Settings area, modify the parameters settings.
   1. Configure the service.annotations parameter and check whether the protocol is correct.

      An example is as follows:

      ...
              "service": {
                 "annotations": {
                    "kubernetes.io/elb.class": "performance",
                    "kubernetes.io/elb.id": "*****",
                    "kubernetes.io/elb.protocol-port": "https:443,http:80",
                    "kubernetes.io/elb.cert-id": "*****"
              },
      ...



      Parameter	Value Type	Description
      kubernetes.io/elb.class	String	Load balancer type. union: shared load balancer performance: dedicated load balancer
      kubernetes.io/elb.id	String	The load balancer ID. You can view the load balancer ID on the ELB console.
      kubernetes.io/elb.protocol-port	String	The listener port of the NGINX Ingress Controller add-on. The listener protocol must match the type supported by the associated load balancer. For example, if the HTTP/HTTPS protocol is used, a dedicated load balancer that supports application load balancing is needed. HTTP/HTTPS: If ports 443 and 80 are used for HTTPS and HTTP, respectively, the parameter value is https:443,http:80. TLS: If ports 443 and 80 are used for TLS, the parameter value is tls:443,tls:80. NOTE: To configure TLS for ingresses, make sure the cluster version is v1.23.14-r0, v1.25.9-r0, v1.27.6-r0, v1.28.4-r0, or a later version. TLS relies on ELB. Before enabling TLS on an ingress, check whether TLS is supported in the current region.
      kubernetes.io/elb.cert-id	String	ID of the ELB certificate. To obtain the certificate, log in to the CCE console, choose Service List > Networking > Elastic Load Balance, and click Certificates in the navigation pane. In the load balancer list, copy the ID under the target certificate name.

      For details about the preceding parameters, see Configuring HTTP/HTTPS for a LoadBalancer Service.

   2. Configure the targetPort parameter to direct the load balancer access traffic to the HTTP port of the container.

      An example is as follows:

      ...
      		"targetPorts": {
      			"http": "http",
      			"https": "http"
      		},
      ...



      Note

      Once an ELB certificate is configured, the default server certificate (default-ssl-certificate) configured for the NGINX Ingress Controller becomes unavailable and invalid. It is essential for external requests to include the configured ELB certificate, because requests without it will not be processed properly.

3. Configure other mandatory parameters as required and click Install. For details about the parameters, see NGINX Ingress Controller.
4. After completing the configuration, choose Services & Ingresses in the navigation pane, switch to the kube-system namespace, and check the protocols and listening ports of the add-on. In this example, the protocol is HTTP and HTTPS instead of TCP.
