Managing Mobile OTP Application for Login Authentication
A mobile OTP application is a software token application used to generate a dynamic password on a bound mobile phone. You can configure mobile one-time password (OTP) verification to implement MFA for your bastion host. After mobile OTP verification is configured, in addition to the username and password, a 6-digit mobile OTP verification code is required for each login. For details, see Configuring Mobile OTP Login Authentication.
Currently, built-in mobile OTPs and Remote Authentication Dial In User Service (RADIUS) mobile OTPs are supported.
- Built-in mobile OTP application: WeChat applet mobile OTP.
- RADIUS mobile OTP applications: Google Authenticator and FreeOTP
- Ensure that your bastion host and mobile phone have the same system time, accurate to seconds. Otherwise, the mobile OTP application may fail to be bound to the user account.
- If the mobile OTP fails to be bound, change the system time to be the same as the mobile phone time. After this, refresh the page to generate a new quick response (QR) code for binding.
This topic describes how to bind and unbind a mobile OTP application.
Binding a Mobile OTP application to a User
- Log in to your bastion host.
- On the Dashboard page, click the user name in the upper right corner and choose Profile.
Figure 1 Profile
- Click the Mobile OTP tab.
- In the displayed Mobile OTP dialog box, bind a mobile OTP application as prompted.
- WeChat applet access token
Start WeChat on the mobile phone, obtain the dynamic password for binding according to the operation guide, and enter the 6-digit dynamic password. After the verification, the mobile OTP application is bound.
- App-based mobile OTP
Start the installed mobile OTP application, scan the QR code in step 2 to obtain a dynamic password, and enter the 6-digit dynamic password. After the verification, the mobile OTP application is bound to you.
- WeChat applet access token
- Refresh the page.
Unbinding a Mobile OTP Application
Click Unbind on the Mobile OTP tab to unbind the mobile OTP application.
After the unbinding, refresh the page.

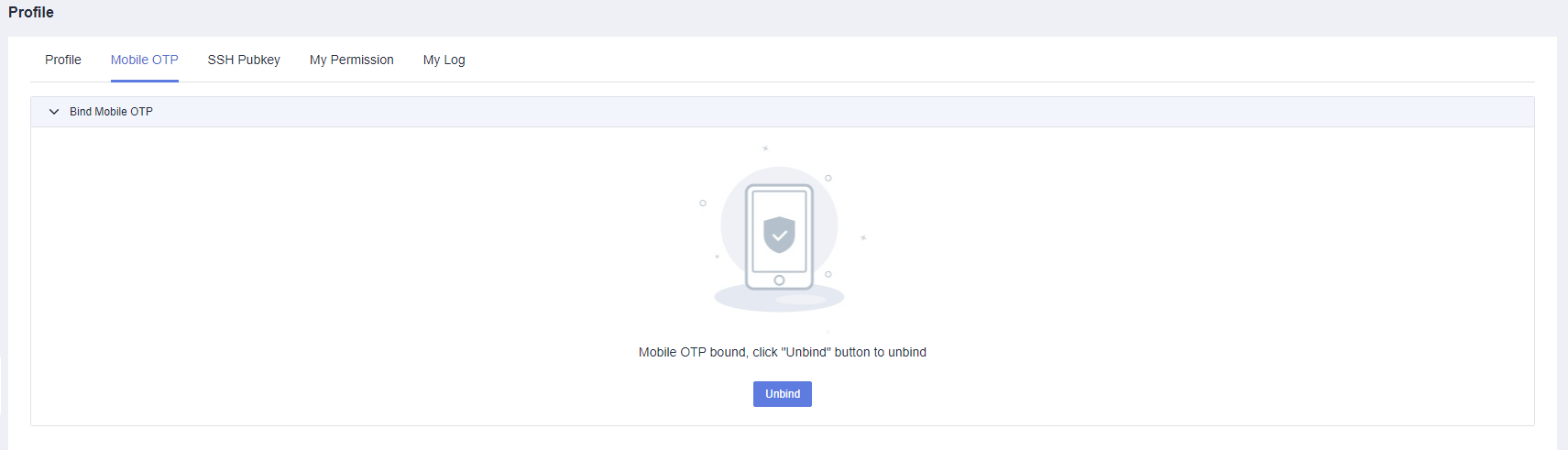

Figure 2 Unbinding a mobile OTP application
