Using a Web Browser to Log In to Your Bastion Host

Prerequisites

Procedure

1. Enter the IP address of your bastion host in the address box of your browser to access the login page.

   URL: https:// EIP of your bastion host, for example, https://10.10.10.10.

   Note

   Use supported browsers to access your bastion host. In an incompatible browser, the login verification message may fail to be sent to you, or exceptions may occur after you log in.

2. Select a login authentication method.

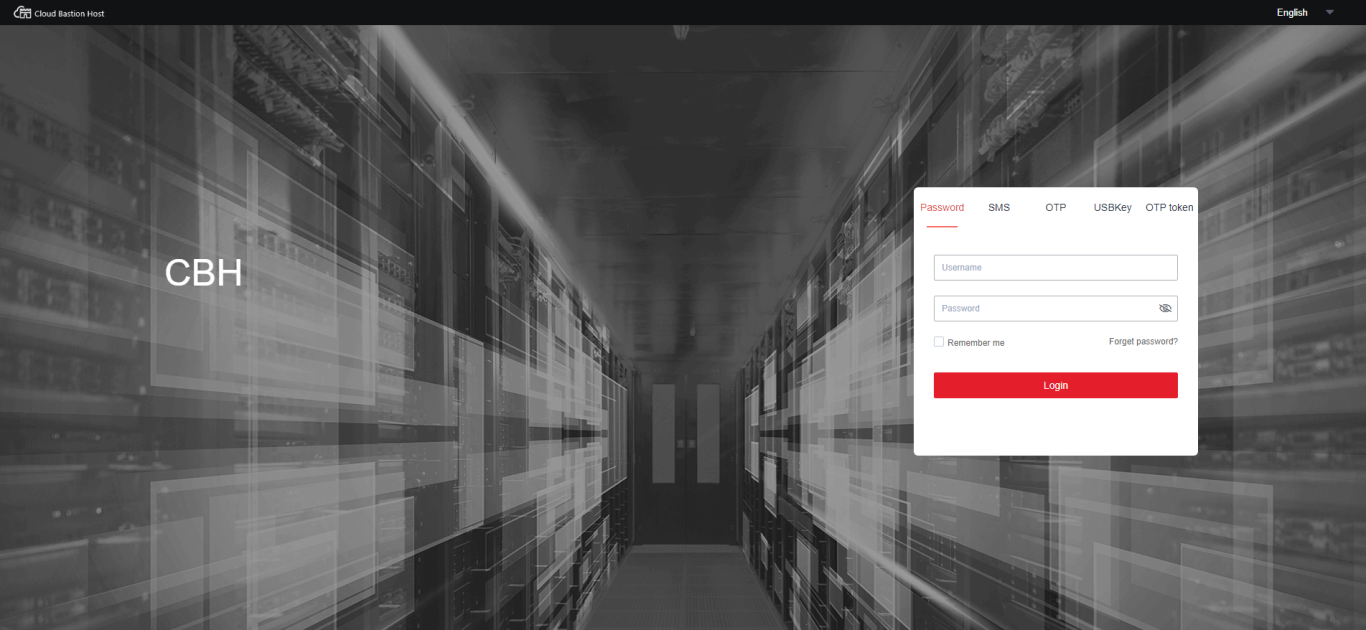

   Figure 1 Bastion host system login page




3. Enter credentials required by the login method you chose.

   The following content walks you through how to log in to your bastion host using different authentication methods.

Using Static Passwords for Logging

1. Select Password.
2. Enter the username and password of your account.
3. Click Login.

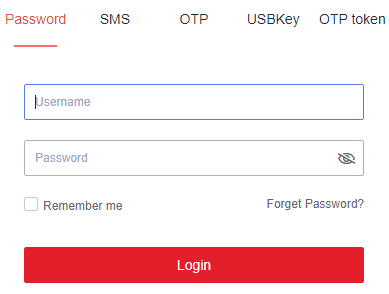

   Figure 2 Password authentication




Using SMS Verification for Logging

1. Select SMS.
2. Enter the username and password of your PBH account.
3. Click Send code and enter the 6-digit OTP token in the received SMS message.
4. Click Login.

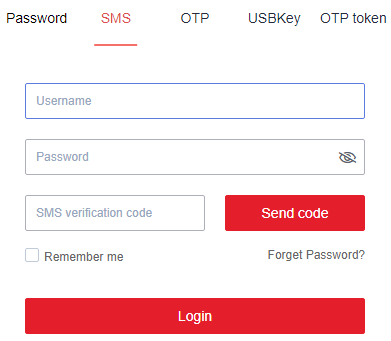

   Figure 3 SMS authentication




Using Mobile OTPs for Logging

1. Select OTP.
2. Enter the username and password of your account.
3. Start the token client on your mobile phone, obtain the 6-digit OTP, and enter it in the OTP text box.
4. Click Login.

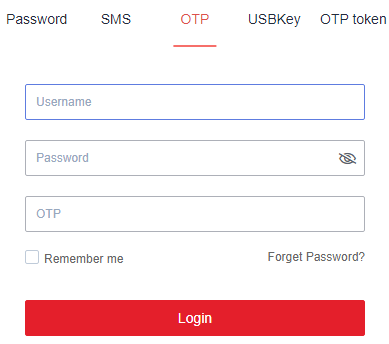

   Figure 4 OTP authentication




Login Through USB Key Authentication

1. Select USBKey.
2. Insert your USB key. The bastion host automatically identifies the USB key.
3. Enter the PIN code displayed on your USB key.
4. Click Login.

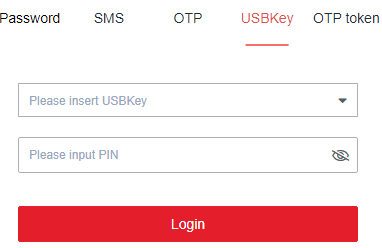

   Figure 5 USB key authentication




Using OTP Tokens for Logging

1. Select OTP token.
2. Enter the username and password of your account.
3. Obtain the 6-digit OTP from the issued hardware token and enter it in the OTP token text box.
4. Click Login.

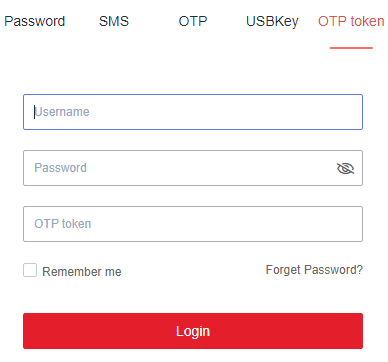

   Figure 6 OTP token authentication
