Step 1: Add a Database

You have applied for a database audit instance and the Status is Running.

1. Log in to the management console.
2. Select a region, click , and choose Security > Database Security Service. The Dashboard page is displayed.
3. In the navigation tree on the left, choose Databases.
4. In the Instance drop-down list, select the instance whose database is to be added.
5. Click Add Database.
6. In the displayed dialog box, configure the database information.

   Figure 1 Add Database dialog box



   Table 1 Parameters

   Parameter	Description	Example Value
   Database Type	Type of the database to be added. You can select RDS database or Self-built database. NOTE: If you select RDS database, you can directly select the databases that you want to add to DBSS.	RDS database
   Name	Custom name of the database to be added	test1
   IP Address	IP address of the database to be added. The IP address must be an internal IP address in IPv4 or IPv6 format.	IPv4: 192.168.1.1 IPv6: fe80:0000:0000:0000:0000:0000:0000:0000
   Type	Supported database type. The options are as follows: MYSQL ORACLE PostgreSQL SQL Service DWS GaussDB for MYSOL GaussDB DAMENG KINGBASE SHENTONG GBase 8a GBase XDM Cluster Greenplum HighGo MariaDB Hive NOTE: If ORACLE is selected, to make the audit settings take effect, restart the applications to be audited and log in to the database again.	MYSQL
   Port	Port number of the database to be added	3306
   Version	Supported database versions When Type is set to MYSQL, the following versions are available: 5.0, 5.1, 5.5, 5.6, and 5.7 8.0 (8.0.11 and earlier) When Type is set to ORACLE, the following versions are available: 11g 12c 19c When Type is set to POSTGRESQL, the following versions are available: 7.4 8.0 8.0, 8.1, 8.2, 8.3, 8.4 9.0 9.0, 9.1, 9.2, 9.3, 9.4, 9.5, 9.6 10.0 10.0, 10.1, 10.2, 10.3, 10.4, 10.5 11.0 12.0 13.0 14.0 When Type is set to SQLSERVER, the following versions are available: 2008 2012 2014 2016 2017 When Type is set to DWS, the following versions are available: 1.5 When Type is set to GaussDB for MySQL, the following version is available: MySQL 8.0 When Type is set to GaussDB, the following version is available: 1.4 Enterprise Edition When Type is set to DAMENG, the following version is available: DM8 When Type is set to KINGBASE, the following version is available: V8	5.0
   Instance	Instance name of the database to be audited NOTE: If you do not configure the Instance field, database audit will audit all instances in the database. If you enter an instance name, database audit will audit the entered instance. Enter a maximum of five instance names and use semicolons (;) to separate instance names.	-
   Character Set	Encoding format of the database character set. The options are as follows: UTF-8 GBK	UTF-8
   OS	OS of the added database. The options are as follows: LINUX64	LINUX64

7. Click OK. A database whose Audit Status is Disabled is added to the database list.

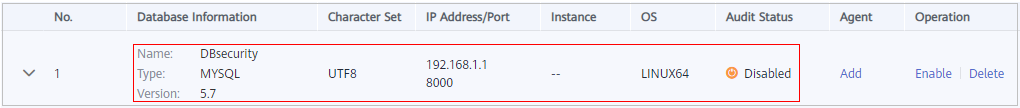

   Figure 2 Successfully adding a database



   Note

   • After adding the database, confirm that the database information is correct. If the database information is incorrect, locate the target database and click Delete in the Operation column, and add the database again.
