Horizontal Bar Chart

Эта статья полезна?

Язык статьи: Английский

This section describes parameters of a horizontal bar chart.

Fields

In the Data area on the right, select a dataset, and double-click or drag required dimension and metric fields to the corresponding areas on the Fields tab.

Table 1 Parameters on the Fields tab
Parameter	Description
Field display content	Click in the column and click Field display content to modify the field display content on the displayed page. Click OK.
Aggregation Mode	Select Aggregation Method and click to support setting of no aggregation, sum, count, distinct count, maximum value, minimum value, average value, population standard deviation, sample standard deviation, sample variance, range start value, and range end value.

Set the color legend. Specifically, drag the required field to Color Legend.

Set a filter.

Find the data field you need in the dimension and metric lists within the data column.
Click next to the field you wish to filter and you will be directed to the filter settings page.

Click OK.

Table 2 Filter parameters
Type	Parameter	Description
string	Condition	Filter Mode: The options are Condition and Enumeration. Condition Type: The options are And condition and Or condition. Filter Condition: The options are Exact match, Contain, Start with, End with, Not match, Not contain, Null, and Not null.
string	Enumeration	Query Mode: The options are Single-select and multi-select. Filter Condition: The options are >, ≥, <, ≤, =, ≠, Null, and Not null.
Metric	Condition Type	The options are And condition and Or condition.
Metric	Filter Condition	The options are >, ≥, <, ≤, =, ≠, Null, and Not null. You can select Before aggregation and After aggregation for data. NOTE: If you select Before aggregation, data is filtered before aggregation. If you select After aggregation, data is filtered after aggregation. For aggregation concepts, see Creating a Dataset. You can click Create Filter Condition to set multiple filter criteria.
Date	Range value	Select a time range for filtering.
	Single value	Set a single time for filtering.
	Condition	You can select And condition or Or condition as the condition type and select filter condition like >, ≥, <, ≤, and =. You can click Create Filter Condition to set multiple filter criteria.

Set sorting.
1. Drag and drop required data fields from the Dimension and Metric (Indicator) areas under Data to the Sorting area.
2. Click next to a field in the Sorting area and select a sorting mode. The sorting modes are Ascending, Descending, and Custom.
3. To cancel sorting, click next to the sorting field.
Set the maximum number of query results.
Enter the maximum number of records that can be returned in the text box. The default value is 1000.
Set automatic refresh.
The auto refresh interval supports the following options: no refresh, 1 minute, 5 minutes, 15 minutes, and 30 minutes.

Style

This part describes the style parameters of a horizontal bar chart.

Size/Position
- W: width of the target, in pixels.
- H: height of the target, in pixels.
- X: position of the target on the canvas, in pixels.
- Y: position of the target on the canvas, in pixels.
- Opacity: Adjust the transparency of the target on the canvas using a slider or by manually entering a percentage. A higher percentage means lower transparency.
Figure 1 Size/Position
Global Style
- Font: font of the text in the chart.
Figure 2 Global Style
Bar Style
- Bar Width: bar width, which can be adjusted by entering a numerical value or clicking - or +. Note that the input cannot be empty and must be from 1 to 100.
- Bar Corner Radius: bar corner radius, which can be adjusted by entering a numerical value or clicking - or +. Note that the input cannot be empty and must be from 0 to 100.
- Series Spacing: series spacing, which can be adjusted by entering a numerical value or clicking - or +. Note that the input cannot be empty and must be from –100 to 100.
  Figure 3 Bar style
Margin
- Top: The spacing between the chart and the top of the layer, which can be adjusted by entering a numerical value or clicking - or +.
- Bottom: The spacing between the chart and the bottom of the layer, which can be adjusted by entering a numerical value or clicking - or +.
- Left: The spacing between the chart and the left of the layer, which can be adjusted by entering a numerical value or clicking - or +.
- Right: The spacing between the chart and the right of the layer, which can be adjusted by entering a numerical value or clicking - or +.
  Figure 4 Margin
Value Labels
- Show Value Labels: If the checkbox is selected (), value labels are displayed. If the checkbox is not selected (), value labels are not displayed.
- Font Size: font size of the value label.
- Color: color of the value label.
- Font Weight: font weight of the value label.
- Position: position of the value label.
  Figure 5 Value labels
X Axis
- Show X Axis: If the checkbox is selected (), the X axis is displayed. If the checkbox is not selected (), the X axis is not displayed.
- Text: You can set the font size, font color, font weight, and angle.
- Axis Label: You can set the display format, minimum value, maximum value, and number of divisions.
- Axis Unit: whether to display the axis unit. The unit color and unit name can be set.
- Coordinate Axis: color of the Y axis.
- Grid Line: If the checkbox is selected (), grid lines are displayed. If the checkbox is not selected (), grid lines are not displayed.
Y Axis
- Show Y Axis: If the checkbox is selected (), the Y axis is displayed. If the checkbox is not selected (), the Y axis is not displayed.
- Label: You can set the font size, font color, font weight, and angle.
- Text Overflow: whether to allow text overflow. The overflow width can be set.
- Coordinate Axis: color of the Y axis.
- Grid Line: If the checkbox is selected (), grid lines are displayed. If the checkbox is not selected (), grid lines are not displayed.
Legend
- Show Legend: If the checkbox is selected (), legends are displayed. If the checkbox is not selected (), legends are hidden.
- Text: text style of the legend, including Font Size, Color, and Font Weight.
- Layout: You can set the legend direction, position, left/right spacing, top/bottom spacing, and legend spacing.
  Figure 6 Legend
Tooltips
- Show Tooltips: If the checkbox is selected (), a tooltip is displayed when you preview or view a published component. If the checkbox is not selected (), no tooltip is displayed when you preview or view a published component.
- Data Name: whether to display the data name.
- Color: font color of the tooltips.
- Font Size: font size of tooltips.
- Font Weight: font weight of tooltips.
  Figure 7 Tooltips
Animation
- Show Animation: If the checkbox is selected (), animations are displayed. If the checkbox is not selected (), animations are not displayed.
- Intro Animation Duration (ms): duration of the first rendering of the component, in ms.
- Animation Effect: The system provides multiple common animation slow-moving effects.
- Update Duration (ms): animation duration when the component data is updated, in ms.
- Start from Previous Position: If this option is selected, the animation is played from the position of the previous data when the component data is updated. If this option is deselected, the animation is played from the initial position when the component data is updated.
Series to Category
- Show Series to Category: whether to support the display of series to categories.
Value Settings: You can set the context, units, scientific notation, use of thousand separators, and decimal places for numerical values.
Series
- Color Scheme: Supports default, classic, comfort, intelligence, data, art, and SaaS specifications color schemes.
  Figure 8 Color Scheme
- Series: Supports configuration of series colors (solid and gradient colors).
  Gradient colors can be set with start and end colors, and the start and end colors can also be swapped.
  Figure 9 Series color configuration

Chart Display

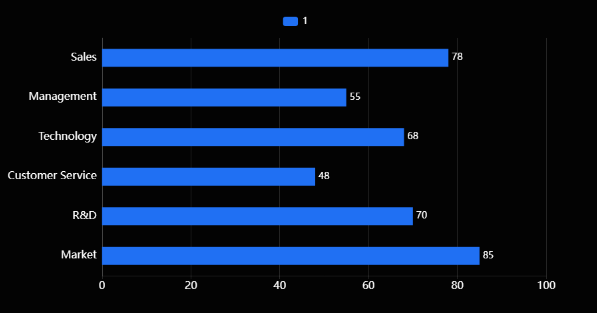

Figure 10 Example of a horizontal bar chart

Parent topic: Bar Chart
