Configuring Decoupled Storage and Compute for an OpenSearch Cluster

Эта статья полезна?

Язык статьи: Английский

As data grows exponentially, traditional monolithic storage architectures struggle to balance performance and cost efficiency. To support high-speed real-time queries while lowering the cost of storing massive quantities of data, CSS offers the storage-compute decoupling feature for OpenSearch clusters.

With decoupled storage and compute, hot data that is frequently accessed is stored in high-performance storage media, while cold data that is infrequently accessed is migrated to low-cost storage media—Object Storage Service (OBS). This ensures real-time query performance for hot data while reducing long-term storage costs.

How the Feature Works

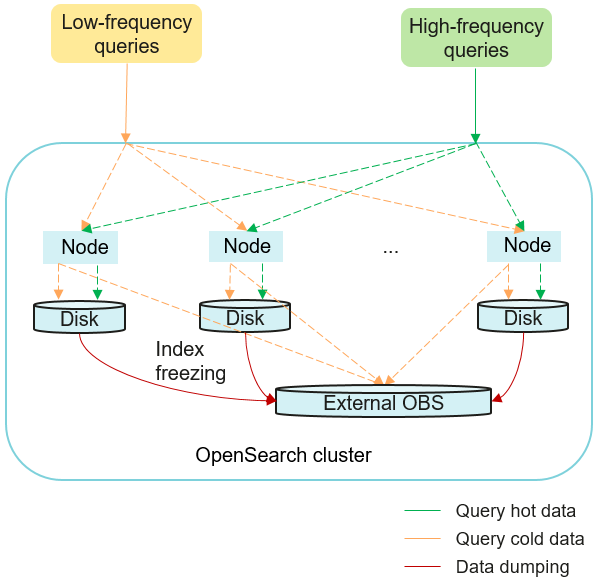

Figure 1 Decoupled storage and compute architecture

This is how storage-compute decoupling works:

Data writing
Hot data is written to high-performance local disks (SSDs) to ensure real-time query performance.
Hot-to-cold transition
Infrequently accessed data is migrated from SSDs to cost-effective OBS (OBS buckets are invisible to users), turning it from hot data to cold data. You can call the index freezing API to manually turn hot data to cold data, or define a lifecycle policy (for example, a 90-day data retention period) to have it triggered automatically. Cold data itself is stored in OBS for cost efficiency, but its metadata and date fields are maintained on local disks to enable rapid search.
Query processing
- Hot data is read directly from local disks with millisecond latency.
- For cold data, the system uses metadata retained on local disks to quickly locate it in OBS, load it, and return it to the user.

In CSS, indexes may go through the following stages during their entire lifecycle.

Hot index (open): Writes are allowed. Query latency is in milliseconds.
Frozen index (freeze): Rarely accessed data is stored in OBS. The index becomes read-only, and query latency is in seconds or even minutes.
Deleted index: Frozen indexes are deleted periodically to reclaim storage resources.

Decoupled storage and compute can be automated via index lifecycle management policies. For details, see Decoupling Index Storage and Compute in an OpenSearch Cluster Through Index Lifecycle Management.

Constraints

Only OpenSearch 1.3.6 and 2.19.0 clusters support decoupled storage and compute.

While an index is being frozen, the system sets the index to the read-only state. Even after the data in the index is dumped to OBS, the index remains read-only and no data can be written into the index.
During index freezing, the data in it can still be queried. After the freezing is complete, the index is closed and then re-opened. During this transition period, the cluster may be in the red state temporarily, and the index becomes unsearchable. The index becomes searchable again after being re-opened.
After an index is frozen, its data is dumped to an OBS bucket, and any index data is deleted from local disks. A frozen index has an increased query latency. During an aggregation operation, the latency becomes even longer because the query is complex and a large amount of data needs to be retrieved.
A frozen index with data already dumped to OBS cannot be unfrozen. That is, a read-only index cannot be rolled back to writable.
In the case of two clusters configured with read/write splitting, the secondary cluster cannot set storage-compute decoupling for indexes synchronized from the primary cluster.
Vector indexes do not support storage-compute decoupling.
When an index is frozen, its data is dumped to an OBS bucket. This process will consume network bandwidth. Make sure data transmission between your cluster and OBS does not exhaust the maximum bandwidth and QPS supported by OBS. If these constraints are violated, the performance of queries that involve OBS will deteriorate. For example, the speed of restoring shards and querying data will be slow.

Logging In to OpenSearch Dashboards

Log in to OpenSearch Dashboards and go to the command execution page. OpenSearch clusters support multiple access methods. This topic uses OpenSearch Dashboards as an example to describe the operation procedures.

Log in to the CSS management console.
In the navigation pane on the left, choose Clusters > OpenSearch.
In the cluster list, find the target cluster, and click Dashboards in the Operation column to log in to OpenSearch Dashboards.
In the left navigation pane, choose Dev Tools.
The left part of the console is the command input box, and the triangle icon in its upper-right corner is the execution button. The right part shows the execution result.

Freezing an Index

Freezing an index means to move cold data from solid state drives (SSDs) to OBS, freeing up SSD storage for hot, frequently accessed data. A frozen index becomes read-only.

Freeze an index.
Run the following command to dump the data of a specified index to OBS and set its storage class to Standard:
```
POST {index_name}/_freeze_low_cost
```
where, index_name indicates the name of the index to be frozen.

Example response:
```
{
    "freeze_uuid": "pdsRgUtSTymVDWR_HoTGFw"
}
```
where, freeze_uuid indicates the ID of the index freezing task, which you can use to query the task progress.

Check the progress of the index freezing task.

Run the following command to check the index freezing progress by specifying the task ID:

GET _freeze_low_cost_progress/{freeze_uuid}

Example response:

{
  "stage" : "STARTED",
  "shards_stats" : {
    "INIT" : 0,
    "FAILURE" : 0,
    "DONE" : 0,
    "STARTED" : 1,
    "ABORTED" : 0
  },
  "indices" : {
    "data1" : [
      {
        "uuid" : "7OS-G1-tRke2jHZPlckexg",
        "index" : {
          "name" : "data1",
          "index_id" : "4b5PHXJITLaS6AurImfQ9A",
          "shard" : 2
        },
        "start_ms" : 1611972010852,
        "end_ms" : -1,
        "total_time" : "10.5s",
        "total_time_in_millis" : 10505,
        "stage" : "STARTED",
        "failure" : null,
        "size" : {
          "total_bytes" : 3211446689,
          "finished_bytes" : 222491269,
          "percent" : "6.0%"
        },
        "file" : {
          "total_files" : 271,
          "finished_files" : 12,
          "percent" : "4.0%"
        },
        "rate_limit" : {
          "paused_times" : 1,
          "paused_nanos" : 946460970
        }
      }
    ]
  }
}

Table 1 Response parameters
Parameter	Description
stage	Status of the index freezing task. Value range: INIT: The task has just started or is being initialized. FAILURE: failed DONE: complete STARTED: started ABORTED: canceled. This field is reserved.
shards_stats	Number of shards in each state.
indices	Status details of each index, as described in Table 2.

Table 2 indices parameters
Parameter	Description
uuid	ID of the index freezing task.
index	Index and shard information.
start_ms	Task start time.
end_ms	Task end time. If the task is still ongoing, -1 is displayed.
total_time	How long the task has been ongoing.
total_time_in_millis	How long the task has been ongoing, in milliseconds.
stage	Shard status.
failure	Task failure cause. If no failure has occurred, null is returned.
size.total_bytes	Total bytes to be frozen.
size.finished_bytes	Number of bytes that have been frozen.
size.percent	Freezing progress in terms of bytes that have been frozen vs total bytes to freeze.
file.total_bytes	Total number of documents to be frozen.
file.finished_bytes	Number of documents that have been frozen.
file.percent	Freezing progress in terms of the number of documents that have been frozen vs. total number of documents to freeze.
rate_limit.paused_times	Number of times freezing has been or was suspended due to rate limiting.
rate_limit.paused_nanos	Duration of freezing task suspension due to rate limiting, in nanoseconds.

When index freezing is complete, the settings parameters will be returned, as described in Table 3.

Table 3 settings parameters
Parameter	Description
index.frozen_low_cost	Frozen index. The value is fixed to true.
index.blocks.write	Writes disallowed to a frozen index. The value is fixed to true.
index.store.type	Index storage type. The value is fixed to obs.

Query the list of frozen indexes.
Note
Here, only some of the key parameters for querying the frozen index list are described. For more information about the API, see CAT indices.

Run the following command to query the frozen index list based on index freezing status:
```
GET _cat/freeze_indices?stage={STAGE}
```
STAGE indicates the index freezing status. The value can be:
- start: Freezing has started and is ongoing.
- done: Freezing has completed.
- unfreeze: Freezing has not started.
- Empty or any other value: Freezing is ongoing or has completed.
Example response:
```
green open data2 0bNtxWDtRbOSkS4JYaUgMQ 3 0  5 0  7.9kb  7.9kb
green open data3 oYMLvw31QnyasqUNuyP6RA 3 0 51 0 23.5kb 23.5kb
```

Optimizing Cache Settings for Frozen Indexes

After an index is frozen, its data is dumped to OBS. To reduce direct data retrieval from OBS and thus improve query performance, some data is cached in the cluster. Data that is requested for the first time is directly retrieved from OBS. The retrieved data is then cached in the cluster memory. In response to subsequent queries, the system searches the cache first. CSS allows you to query cache statistics for frozen indexes that are stored in OBS buckets. You can also reset the cache status and modify cache configuration.

Query cache statistics for frozen indexes stored in OBS buckets.

Run the following command to query cache statistics for frozen indexes on all nodes:
```
GET _frozen_stats
```
Run the following command to query cache statistics for frozen indexes on specified nodes:
```
GET _frozen_stats/{node_id}
```
where, node_id indicates a cluster node ID.

The following is an example of the returned information for querying frozen index cache statistics on all nodes:

{
  "_nodes" : {
    "total" : 1, 	// Total number of nodes
    "successful" : 1,  	// Successful nodes
    "failed" : 0  	// Failed nodes
  },
  "cluster_name" : "css-zzz1", 			//Cluster name
  "nodes" : {
    "7uwKO38RRoaON37YsXhCYw" : {
      "name" : "css-zzz1-ess-esn-2-1",		//Node name
      "transport_address" : "10.0.0.247:9300",	//Node transport address
      "host" : "10.0.0.247", 			//Node host
      "ip" : "10.0.0.247", 			//Node IP address
      "block_cache" : {
        "default" : {
          "type" : "memory", 			//Cache type. memory indicates in-memory cache.
          "block_cache_capacity" : 8192,  //Cache capacity
          "block_cache_blocksize" : 8192, 	//Single block size in the cache, in bytes. In the example, the block size is 8 KB.
          "block_cache_size" : 12, 		//Cache capacity used
          "block_cache_hit" : 14,  		//Number of cache hits
          "block_cache_miss" : 0, 		//Number of cache misses
          "block_cache_eviction" : 0, 		//Number of cache evictions
          "block_cache_store_fail" : 0 		//Number of cache storage failures, which occur when the cache is full.
        }
      },
      "obs_stats" : {
        "list" : {
          "obs_list_count" : 17, 		//Number of times the OBS list API was called.
          "obs_list_ms" : 265, 			//Total length of time spent calling the OBS list API.
          "obs_list_avg_ms" : 15 		//Average time spent calling the OBS list API.
        },
        "get_meta" : {
          "obs_get_meta_count" : 79, 	//Number of times the OBS get metadata API was called.
          "obs_get_meta_ms" : 183, 	//Total length of time spent calling the OBS get metadata API.
          "obs_get_meta_avg_ms" : 2 	//Average time spent calling the OBS get metadata API.
        },
        "get_obj" : {
          "obs_get_obj_count" : 12, 	//Number of times the OBS get object API was called.
          "obs_get_obj_ms" : 123, 	//Total length of time spent calling the OBS get object API.
          "obs_get_obj_avg_ms" : 10 	//Average time spent calling the OBS get object API.
        },
        "put_obj" : {
          "obs_put_obj_count" : 12, 	//Number of times the OBS put object API was called.
          "obs_put_obj_ms" : 2451, 	//Total length of time spent calling the OBS put object API.
          "obs_put_obj_avg_ms" : 204 	//Average time spent calling the OBS put object API.
        },
        "obs_op_total" : {
          "obs_op_total_ms" : 3022, 	//Total length of time spent calling OBS APIs.
          "obs_op_total_count" : 120, 	//Total number of times calling OBS APIs.
          "obs_op_avg_ms" : 25 		//Average time spent calling OBS APIs.
        }
      },
      "reader_cache" : {
        "hit_count" : 0,
        "miss_count" : 1,
        "load_success_count" : 1,
        "load_exception_count" : 0,
        "total_load_time" : 291194714,
        "eviction_count" : 0
      }
    }
  }
}

Reset the cache status for frozen indexes stored in OBS buckets.
Run the following command to reset the cache status for frozen indexes:
```
POST _frozen_stats/reset
```
This command is used to debug performance issues. If you reset the cache status and then run the cache query command, you can check the accurate cache command status. It is not advisable to use this command during runtime.

Example response:
```
{
  "_nodes" : {
    "total" : 1,
    "successful" : 1,
    "failed" : 0
  },
  "cluster_name" : "Es-0325-007_01",
  "nodes" : {
    "mqTdk2YRSPyOSXfesREFSg" : {
      "result" : "ok"
    }
  }
}
```

Modify cache configuration for frozen indexes.

Elasticsearch accesses different types of files using different methods. The cache system supports multi-level caches and uses blocks of different sizes to cache different types of files. For example, typically, a large number of small blocks are used to cache .fdx and .tip files, while a small number of large blocks are used to cache .fdt files. You can modify the cache configuration based on service needs. Table 4 describes the parameters that can be configured.

Table 4 Cache configuration parameters
Parameter	Type	Description
low_cost.obs.blockcache.names	Array	A list of names of multi-level caches. The cache system supports multi-level caches for data of different access granularities. There is a default cache named default. If you configure this parameter, the value must include at least the default cache in addition to other custom cache names. Default value: default
low_cost.obs.blockcache.<NAME>.type	ENUM	Storage type of the cache named <NAME>. Value range: memory: The cache uses in-memory storage, which means it consumes memory resources. file: The cache uses disk storage. Its capacity is limited by available disk space. In this case, you are advised to use ultra-high I/O disks to improve cache performance. Default value: memory
low_cost.obs.blockcache.<NAME>.blockshift	Integer	Block size in the cache named <NAME> (in bytes). Formula: 2^blockshift. For example, if the value is 16, the block size is 2¹⁶ bytes, that is, 65536 bytes or 64 KB. Value: number of left-shits Default value: 13 (equivalent to 8 KB)
low_cost.obs.blockcache.<NAME>.bank.count	Integer	Number of partitions in the cache named <NAME>. Each partition is an independent unit in the cache. Default value: 1
low_cost.obs.blockcache.<NAME>.number.blocks.perbank	Integer	Number of blocks in each partition of the cache named <NAME>. Default value: 8192
low_cost.obs.blockcache. <NAME>.exclude.file.types	Array	List of file name extensions for files that cannot be cached in the cache named <NAME>. If a file's extension is not in exclude.file.types or <NAME>.file.types (if configured), the default cache policy applies.
low_cost.obs.blockcache. <NAME>.file.types	Array	List of file name extensions for files that can be cached in the cache named <NAME>. If a file's extension is not in exclude.file.types or <NAME>.file.types (if configured), the default cache policy applies.
index.frozen.obs.max_bytes_per_sec	String	Maximum rate at which the documents of frozen indexes are uploaded to OBS. Format: <value><unit>. The unit can be B (byte), KB, MB, or GB. The change takes effect immediately. Default value: 150 MB
low_cost.obs.index.upload.threshold.use.multipart	String	Multipart upload threshold. In the process of dumping frozen indexes to OBS, if the size of a single document exceeds this threshold, a multipart upload is performed. Format: <value><unit>. The unit can be B (byte), KB, MB, or GB. Multipart upload is supported by OBS. 0 or not configured: Multipart upload may be disabled. Default value: 1 GB

The following is a typical cache configuration example. A two-level cache system is used: default and large. The default cache has a total of 30 x 4096 64-KB blocks. It is used to cache non-.fdt files. The large cache has 5 x 1000 2-MB blocks. It is used to cache .fdx, .dvd, and .tip files.

low_cost.obs.blockcache.names: ["default", "large"]
low_cost.obs.blockcache.default.type: file
low_cost.obs.blockcache.default.blockshift: 16
low_cost.obs.blockcache.default.number.blocks.perbank: 4096
low_cost.obs.blockcache.default.bank.count: 30
low_cost.obs.blockcache.default.exclude.file.types: ["fdt"]

low_cost.obs.blockcache.large.type: file
low_cost.obs.blockcache.large.blockshift: 21
low_cost.obs.blockcache.large.number.blocks.perbank: 1000
low_cost.obs.blockcache.large.bank.count: 5
low_cost.obs.blockcache.large.file.types: ["fdx", "dvd", "tip"]

Enhancing Query Performance for Frozen Indexes

Only OpenSearch 1.3.6 and 2.19.0 clusters support query performance enhancement for frozen indexes.

When frozen indexes are queried on the Discover page of OpenSearch Dashboards for the first time, all data needs to be retrieved from OBS because there is no data in the cache. If a large number of documents need to be returned, it takes a long time to retrieve the corresponding time fields and document metadata from OBS. By caching this part of data in the cluster, query performance can be improved significantly. This is how CSS improves query performance for frozen indexes. Local cache settings are preset. You can review them and modify them as needed.

Modify local cache settings for frozen indexes.

Table 5 Local cache settings
Configuration Item	Type	scope	Can Be Changed Dynamically	Description
low_cost.local_cache.max.capacity	Integer	node	Yes	Maximum number of cold data caches that can be made available on each node. (Each shard corresponds to a cache.) Value range: 10–5000 Default value: 500 If the heap memory usage remains high, decrease this value. If the value of load_overflow_count keeps increasing rapidly, increase this value.
index.low_cost.local_cache.threshold	Integer	index	Yes	Threshold for enabling local caching of cold data. If in an index, the percentage of date fields is lower than this value, cold data of the date type will be cached locally. Otherwise, the local cache will not be used. If date fields account for the vast majority of the total data volume of the current index, you should not use this setting. Value range: 0–100 Default value: 50 Unit: %
index.low_cost.local_cache.evict_time	String	index	Yes	Retention duration for cold data in the local cache. The value is determined by index.frozen_date (time of index freezing). If index.frozen_date is unavailable, the value is determined by the index creation time. You are advised to adjust the retention duration based on your disk usage. Value range: 1 to 365 days Default value: 30d Unit: days

The following provides some examples, where index_name indicates the modified index.

Run the following command to modify low_cost.local_cache.max.capacity:

PUT _cluster/settings
 {
   "persistent": {
     "low_cost.local_cache.max.capacity":1000
   }
 }

Run the following command to modify index.low_cost.local_cache.threshold:

PUT {index_name}/_settings
 {
 "index.low_cost.local_cache.threshold":20
 }

Run the following command to modify index.low_cost.local_cache.evict_time:

PUT {index_name}/_settings
 {
 "index.low_cost.local_cache.evict_time":"7d"
 }

Query local cache statistics for frozen indexes.

Query local cache statistics for frozen indexes on all nodes:
```
GET /_frozen_stats/local_cache
```
Query local cache statistics for frozen indexes on specified nodes:
```
GET /_frozen_stats/local_cache/{node_id}
```
where, node_id indicates a cluster node ID.

Example response:

{
   "_nodes" : {
     "total" : 1,
     "successful" : 1,
     "failed" : 0
   },
   "cluster_name" : "test",
   "nodes" : {
     "6by3lPy1R3m55Dcq3liK8Q" : {
       "name" : "node-1",
       "transport_address" : "127.0.0.1:9300",
       "host" : "127.0.0.1",
       "ip" : "127.0.0.1",
       "local_cache" : {
         "get_stats" : {
           "get_total_count" : 562,               //Total number of times data was retrieved from the local cold data cache.
           "get_hit_count" : 562,                 //Total number of hits in the local cold data cache.
           "get_miss_count" : 0,                  //Total number of local cold data cache misses.
           "get_total_ns" : 43849200,             //Total duration for retrieving data from the local cold data cache.
           "get_avg_ns" : 78023                   //Average duration for retrieving data from the local cold data cache.
         },
         "load_stats" : {
           "load_count" : 2,                      //Number of times cold data was loaded from the local cache
           "load_total_ms" : 29,                  //Total duration for loading cold data from the local cache
           "load_avg_ms" : 14,                    //Average duration for loading cold data from the local cache
           "load_fail_count" : 0,                 //Number of failures for loading cold data from the local cache
           "load_overflow_count" : 0         //Number of times the local cold data cache exceeds the cache pool size.
         },
         "reload_stats" : {
           "reload_count" : 0,                   //Number of times the local cold data cache was regenerated.
           "reload_total_ms" : 0,                 //Total duration for regenerating the local cold data cache.
           "reload_avg_ms" : 0,                  //Average duration for regenerating the local cold data cache.
           "reload_fail_count" : 0                //Number of failures in regenerating the local cold data cache.
         },
         "init_stats" : {
           "init_count" : 0,                      //Number of times the local cold data cache was initialized.
           "init_total_ms" : 0,                  //Total duration for initializing the local cold data cache.
           "init_avg_ms" : 0,                     //Average duration for initializing the local cold data cache.
           "init_fail_count" : 0                  //Number of failures in initializing the local cold data cache.
         }
       }
     }
   }
 }

Querying the Real-Time Rates of OBS in Handling Cold Data

Only OpenSearch 1.3.6 and 2.19.0 clusters support this feature.

To help you understand how the storage-compute decoupling plug-in is working with OBS, an API for collecting statistics on the real-time rates of OBS has been added, and the real-time rates are recorded in the index .freeze_obs_rate-YYYY.mm.dd.

Calculation method: The average OBS operation rates in the last 5 seconds are calculated every 5 seconds.

The system index .freeze_obs_rate-YYYY.mm.dd records statistics on OBS real-time operation rates, helping you understand relevant trends about the OBS resources that store cold data. The default retention period of the index is 30 days.

Querying the real-time rates of OBS in handling cold data.

Run the following command to query the real-time OBS rates on all nodes:
```
GET _frozen_stats/obs_rate
```
Run the following command to query the real-time OBS rates on specified nodes:
```
GET _frozen_stats/obs_rate/{node_id}
```
where, node_id indicates a cluster node ID.

Example response:

{
   "_nodes" : {
     "total" : 1,
     "successful" : 1,
     "failed" : 0
   },
   "cluster_name" : "test",
   "nodes" : {
     "dflDvcSwTJ-fkiIlT2zE3A" : {
       "name" : "node-1",
       "transport_address" : "127.0.0.1:9300",
       "host" : "127.0.0.1",
       "ip" : "127.0.0.1",
       "update_time" : 1671777600482,               // Time when the current statistics were updated.
       "obs_rate" : {
         "list_op_rate" : 0.0,                     // Rate of OBS list operations. Unit: times/s.
         "get_meta_op_rate" : 0.0,                 // Rate of OBS get meta operations. Unit: times/s.
         "get_obj_op_rate" : 0.0,                  // Rate of OBS get operations. Unit: times/s.
         "put_op_rate" : 0.0,                      // Rate of OBS put operations. Unit: times/s.
         "obs_total_op_rate" : 0.0,                // Rate of all OBS operations. Unit: times/s.
         "obs_upload_rate" : "0.0 MB/s",            // OBS data upload rate. Unit: MB/s.
         "obs_download_rate" : "0.0 MB/s"          // OBS data download rate. Unit: MB/s.
       }
     }
   }
 }

Modify the retention period of the .freeze_obs_rate-YYYY.mm.dd index that stores the OBS real-time rates. The default retention period of this index is 30 days.

Run the following command to change the index retention period to seven days:

PUT _cluster/settings
 {
   "persistent": {
     "low_cost.obs_rate_index.evict_time":  "7d"
   }
 }

Table 6 Configuration items
Configuration Item	Type	scope	Can Be Changed Dynamically	Description
low_cost.obs_rate_index.evict_time	String	node	Yes	The retention period of the .freeze_obs_rate-YYYY.mm.dd index. Value range: 1 to 365 days Default value: 30d Unit: days

Configuring Decoupled Storage and Compute for an OpenSearch Cluster

How the Feature Works

Constraints

Logging In to OpenSearch Dashboards

Freezing an Index

Optimizing Cache Settings for Frozen Indexes

Enhancing Query Performance for Frozen Indexes

Querying the Real-Time Rates of OBS in Handling Cold Data

Related Documents
