Overview

Background

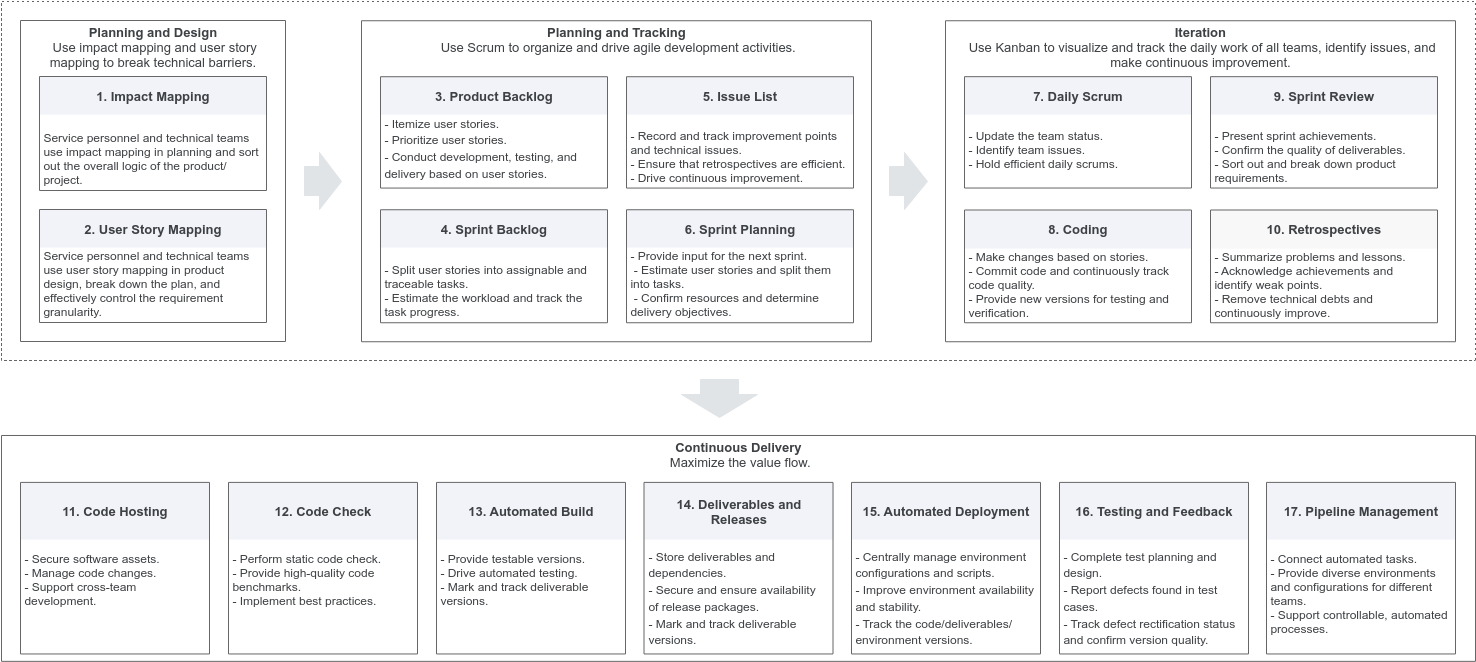

Figure 1 HE2E DevOps implementation framework

• Planning and Design

  The first two steps in the diagram depict the product planning process where service personnel (or customers) collaborate with technical personnel to establish the product's overall logic, plan and design the product, and break down requirements at a specific granularity.

  • Software development solves issues and delivers value, not simply provides functions. Impact mapping identifies user requirements and root causes.
  • User stories convey objectives and requirements in specific scenarios, facilitating communication between customers, service personnel, and developers. If you only view separate requirement items, you cannot consider them from the entire solution's perspective. User stories focus on scenarios, sort out and display stages and activities in a tree structure. In this way, you will view both requirement items and overall requirement scenarios.

• Planning, Tracking, and Iteration

  Steps 3 to 10 are the main management practices in the Scrum framework.

  • Scrum defines a relatively complete framework for agile process management. CodeArts well integrates the Scrum framework with daily activities of development teams. Main process deliverables include the product backlog, sprint backlog, potential deliverable product increments, and issue list. Core team activities include sprint planning meetings, daily Scrums, sprint reviews, sprint retrospective meetings, and daily updates.

• Continuous Delivery

  Starting from step 11 is the engineering practice, that is, the CI/CD process.

  • Continuous delivery is based on code configuration management. It not only covers traditional security control of code assets, concurrent development, and version and baseline management, but also reflects team collaboration and communication.
  • The pipeline connects code check (or static scanning), automated build, automated testing in all stages, and automated deployment.
  • Continuous delivery also covers continuous artifact management and environment management at different levels, including development, test, quasi-production, and production environments.
  • The continuous delivery pipeline manages stages, environments, activities, entry and pass quality gates, and input and output artifacts in each stage.

Application Scenarios

Solution Architecture

• Phoenix Mall Architecture

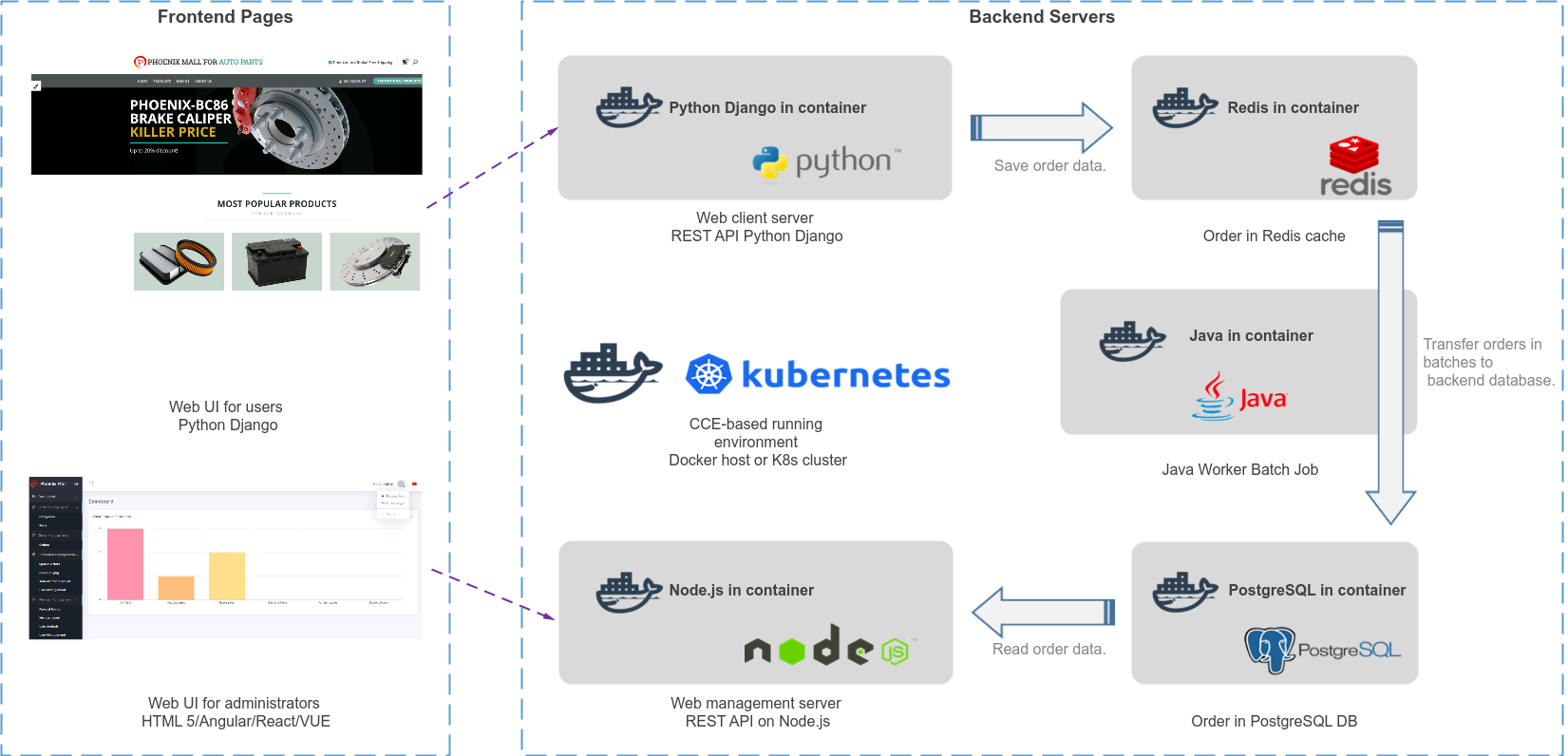

  Figure 2 shows the architecture of the Phoenix Mall sample program.

  Figure 2 Technical architecture of Phoenix Mall




  The sample program consists of five microservice components that can be independently developed, tested, and deployed, as shown in Table 1.

  Table 1 Microservice components of Phoenix Mall

  Microservice Component	Description
  Web client server (corresponding to the Vote function in the sample code)	Service logic: Users can use a browser to access the web UI of this service. When a user clicks Like on a specific offering, the service saves the record of the selected offering in the Redis cache. Technology stack: Python and Flask frameworks Application server: Gunicorn
  Web management server (corresponding to the Result function in the sample code)	Service logic: Users can use a browser to access the web UI of this service. The statistics about Like clicked by users on the UI are dynamically displayed. The data is obtained from the PostgreSQL database. Technology stack: Node.js and Express frameworks Application server: server.js
  Background order batch processing program (corresponding to the Worker function in the sample code)	Service logic: This service is a background process. It monitors item records in the Redis cache, obtains new records, and saves them in the PostgreSQL database so that the management UI can extract data for statistics display. Technology stack: .NET Core or Java (This service provides two technology stacks to implement the same function. You can modify the configuration and select one of the technology stacks as the runtime process.)
  Order cache	Service logic: Persists data for the client UI. Technology stack: Redis
  Order database	Service logic: Serves as the data source of the management UI. Technology stack: PostgreSQL

• Composition of the "DevOps Full-Process" Sample Project

  This project uses the Scrum template and presets some service resources. The following table lists the products and services involved in this project.

  Table 2 List of involved products/services

  Service		Description
  CodeArts	CodeArts Req	Presets three planned and completed sprints, project module settings, and several statistical reports.
  	CodeArts Repo	Presets the code repository phoenix-sample for storing sample code.
  	CodeArts Check	Presets four tasks. For details, see Step 4: Checking Code.
  	CodeArts Build	Presets five tasks. For details, see Step 5: Building an Application.
  	CodeArts Artifact	Stores software packages generated by build tasks.
  	CodeArts Deploy	Presets three applications. For details, see Step 6: Deploying an Application (CCE).
  	CodeArts TestPlan	Presets more than 10 test cases in the test case library.
  	CodeArts Pipeline	Presets five pipelines. For details, see Step 8: Configuring a Pipeline for Continuous Delivery.
  Other components and services	Identity and Access Management (IAM)	Manages accounts.
  	SoftWare Repository for Container (SWR)	Stores Docker images generated by build tasks.
  	Cloud Container Engine (CCE)	Deploys software packages in a different way from ECS-based deployment.
  	Elastic Cloud Server (ECS)	Deploys software packages in a different way from CCE-based deployment.

Advantages

• We provide a one-stop cloud platform to manage the entire software development process, to address R&D pain points such as frequent requirement changes, complex development and test environments, difficult multi-version maintenance, and failure to effectively monitor the progress and quality.
• This service provides visualized and customizable pipeline services for continuous delivery, doubling the software rollout speed.
